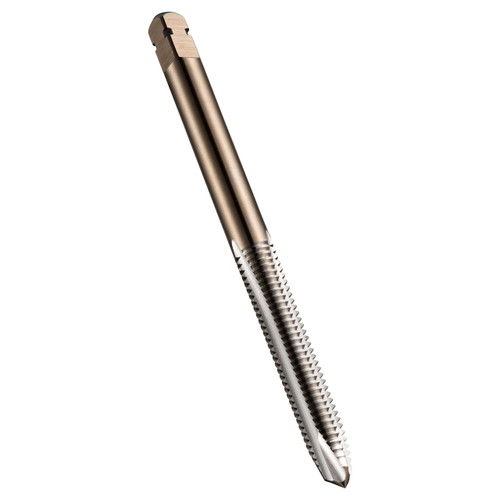

Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M8 with 1.25mm pitch and 6H class of fit, dimensions according to ANSI standard with 0.3180" shank and 0.2380" square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium and copper or copper alloys.
| Connection Diameter (Inch) | 0.318" |
| Overall Length (Inch) | 2.7188" |
| No of Flutes | 3 |
| Usable Length (Inch) | 1.1891" |
| Thread Pitch (mm) | 1.25mm |
| Thread Diameter Size | 8 |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6H |
| Threading Length (Inch) | 0.5939" |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Tap Chamfer Style | B 3.5-5 |
| Surface Color | Bright Silver |
| Thread Form | M-Metric coarse |
| Country of origin | Brazil |
