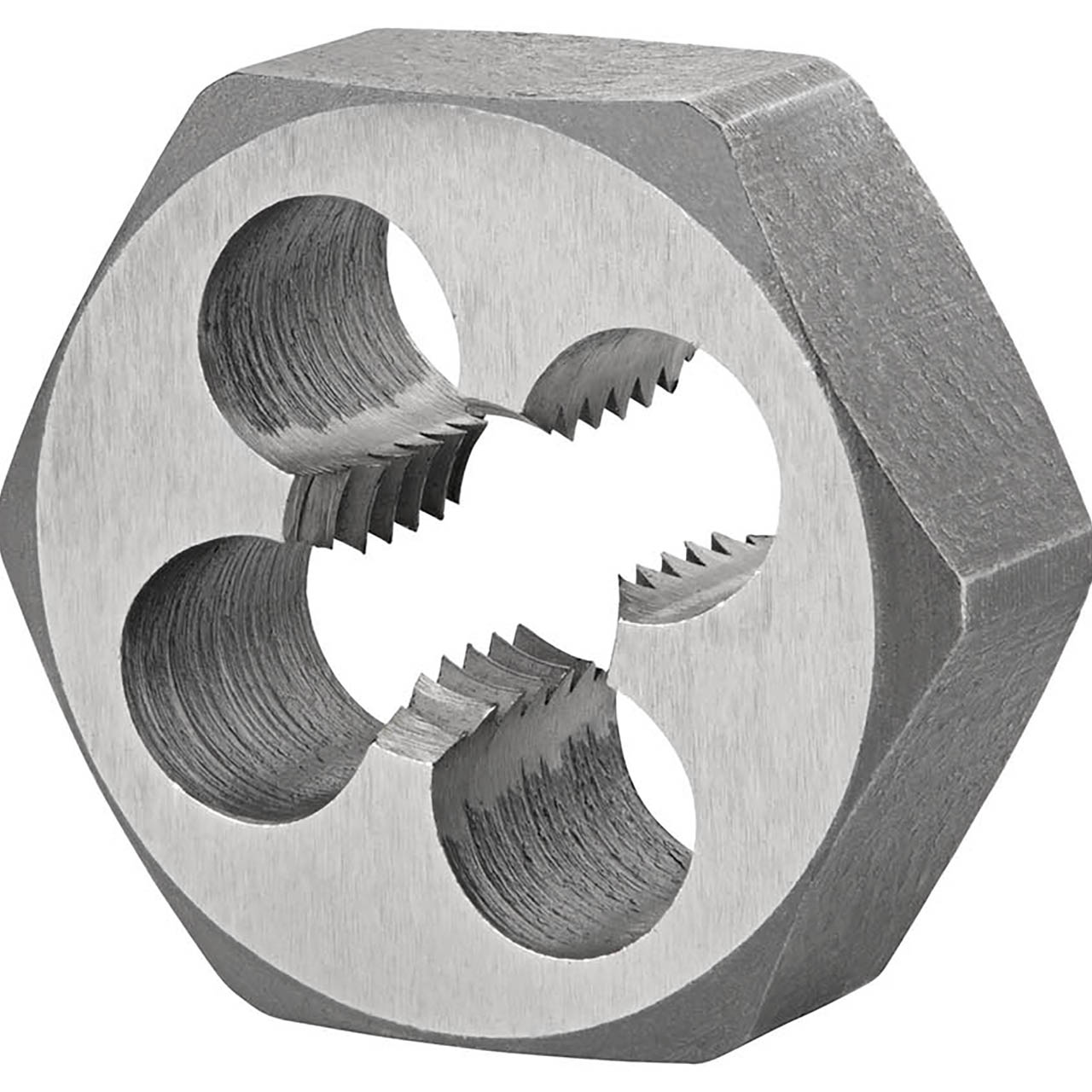

Dormer EX00M16 | 24mm Diameter x 3mm Pitch x 0.9375" OAL Bright Coated Hexagon Die
$361.00
$214.00
Dormer
Dormer
Dormer
Dormer
Dormer
Dormer
Dormer
Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M5 with 0.80mm pitch and 6H class of fit, dimensions according to ANSI standard with 0.1940" shank and 0.1520" square drive, powder metallurgical HSS-E with steam tempered surface finish and 45 Degree helix angle for 2.5xD blind hole threading in general purpose applications.
| Connection Diameter (Inch) | 0.194" |
| Overall Length (Inch) | 2.375" |
| No of Flutes | 3 |
| Flute Helix Angle | 45 |
| Usable Length (Inch) | 0.8434" |
| Thread Pitch (mm) | 0.8mm |
| Thread Diameter Size | 5 |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6H |
| Threading Length (Inch) | 0.265" |
| Cutting Direction | Right Hand |
| Coating | Steam Tempered |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Black |
| Thread Form | M-Metric coarse |
| Country of origin | Brazil |
