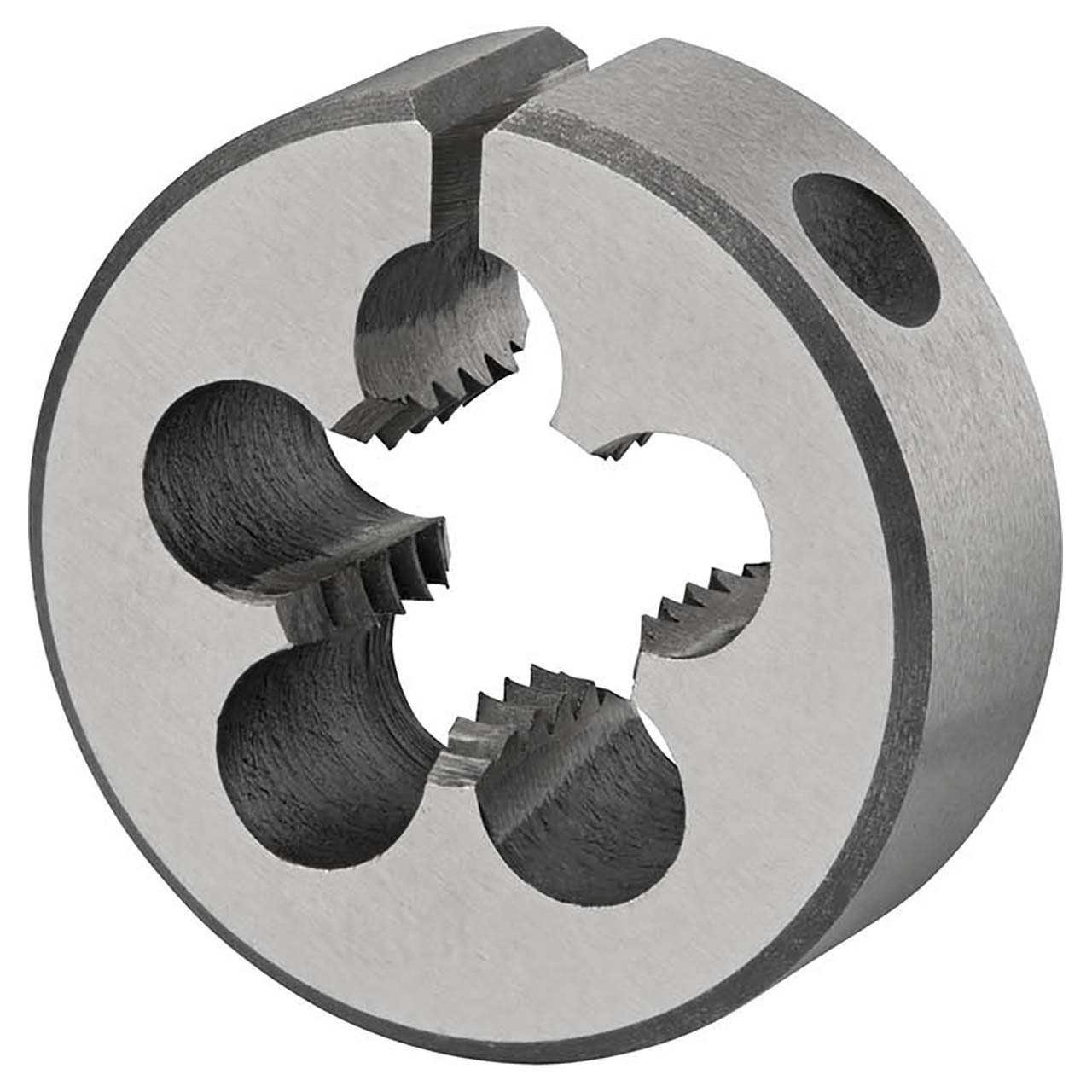

Adjustable circular split die, for ISO-Metric thread M10 with 1.50mm pitch, to reduce the torque when cutting by hand split dies can be adjusted in small increments up to a maximum of approximately 0.15mm, dimensions according to BS 1127:1950 standard with 1.5/16" outside diameter and 7/16" thickness, HSS with bright finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
Product Specifications
| Body Diameter (Inch) | 1.3125" |
| Overall Length (Inch) | 0.4375" |
| Thread Diameter (mm) | 10mm |
| Thread Pitch (mm) | 1.5mm |
| Thread Diameter Size | 10 |
| Material Code | HSS |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
| Thread Form | M-Metric coarse |
