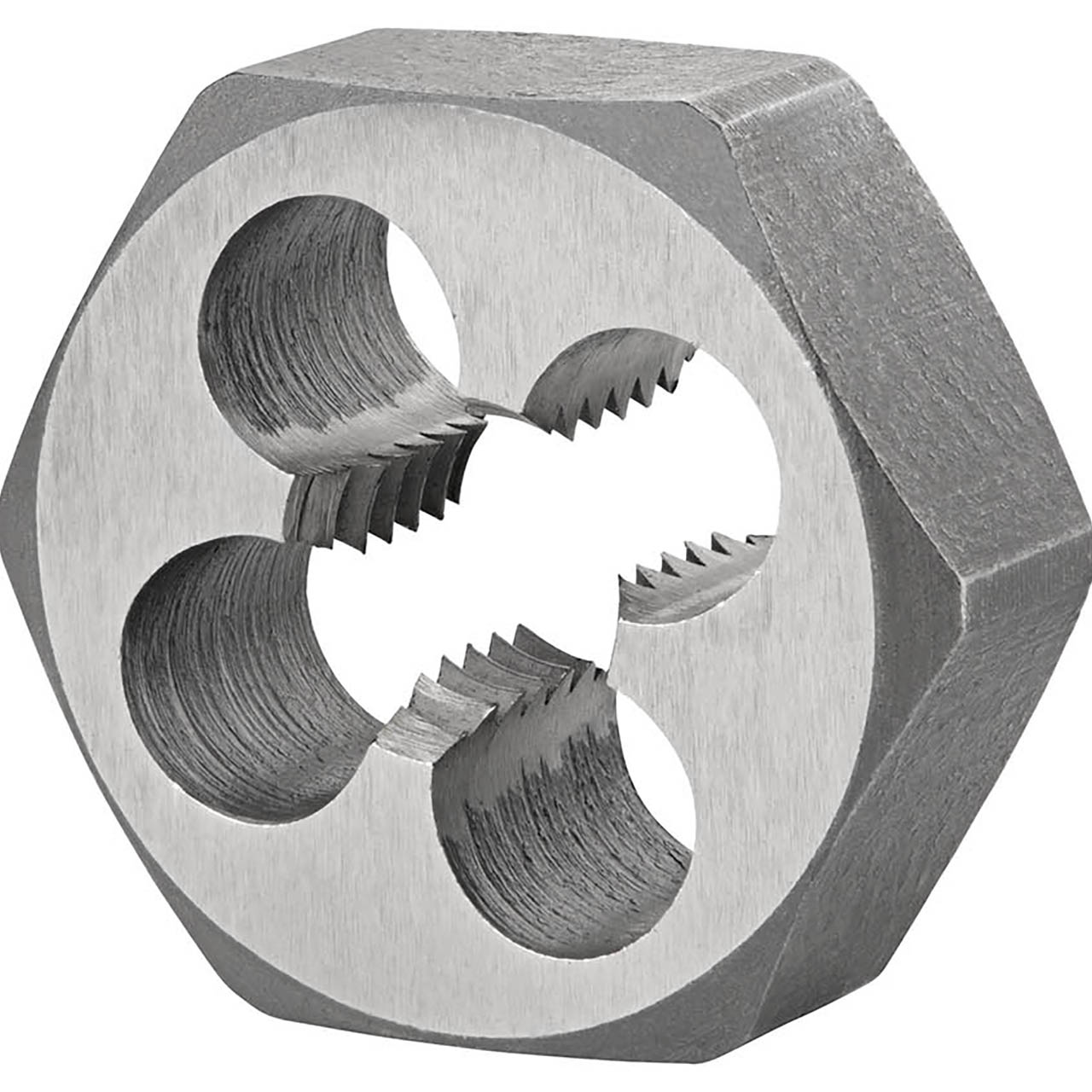

Hexagon die nut, for ISO-Metric Fine thread M12 with 1.50mm pitch and 6g class of fit, dimensions according to BS 1127:1950 standard with 1.0100" width across flat and 7/16" thickness, HSS with bright finish for repairing damaged thread in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
Product Specifications
| Overall Length (Inch) | 0.4375" |
| Thread Diameter (mm) | 12mm |
| Thread Pitch (mm) | 1.5mm |
| Thread Diameter Size | 12 |
| Material Code | HSS |
| Thread Tolerance Class | 6g |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
| Thread Form | MF-Metric fine |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
