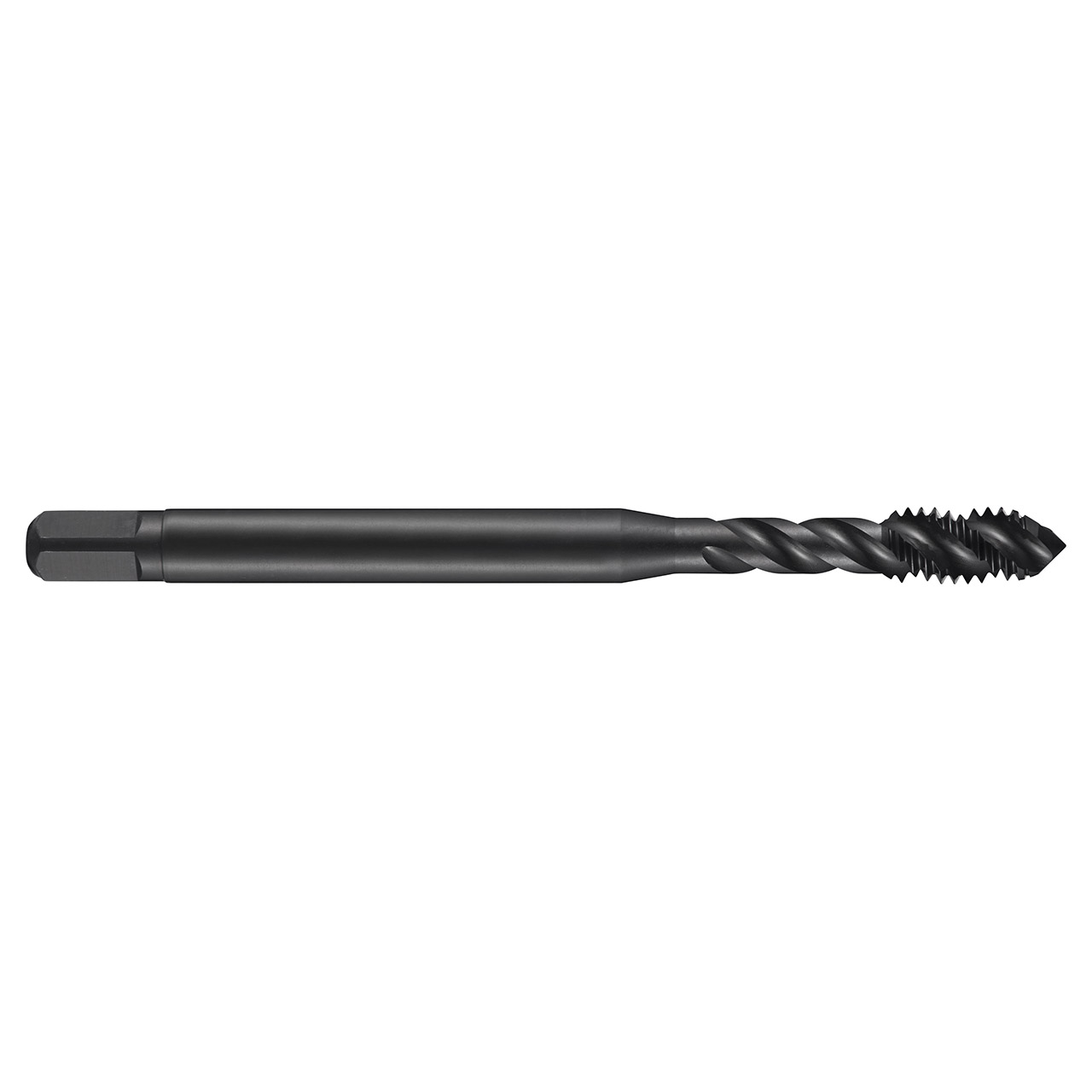

Dormer 5973601 | M8x1.00mm Thread Size x 8.08mm Shank x 69.06mm OAL x 45 Degree Helix Angle MF 6H 3 Flute Steam Tempered Coated HSS-E-PM E018 Spiral Flute Tap

SKU: 15024396 Weight: 0.05 LBS Minimum Purchase: 1 unit
UPC: 7320760581032
$78.20 $49.27
(You save $28.93)
Shipping: Calculated at Checkout

About This Item

Dormer's E016 machine taps are for tapping metric fine threads. They come with a spiral point, for threading through holes (holes which go all the way through the material) and have a steam tempered finish to stop workpiece material from sticking to the cutting edges of the tool so you can be sure of clean, accurate threads. The powder metal High Speed cobalt used in manufacture provides longer tool life combined with great performance, and the taps are very versatile, being suitable for tapping many materials, including steels, stainless steels and aluminium. E008 machine taps for metric fine threads are manufactured to ANSI standards. .


Product Specifications
Connection Diameter (Inch)0.318"
Overall Length (Inch)2.7188"
No of Flutes3
Flute Helix Angle45
Usable Length (Inch)1.3094"
Thread Pitch (mm)1mm
Thread Diameter Size8
Material CodeHSS-E-PM
Thread Tolerance Class6H
Threading Length (Inch)0.4567"
Cutting DirectionRight Hand
CoatingSteam Tempered
Tap Chamfer StyleC 2-3
Surface ColorBlack
Thread FormMF-Metric fine
Country of originBrazil
