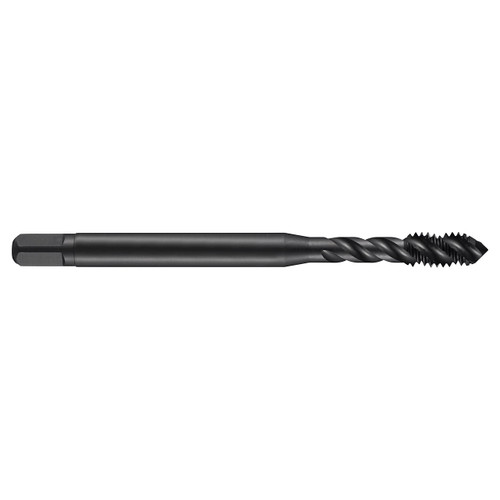

Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for Unified National Coarse thread UNC 5/8" with 11 TPI and 2B class of fit, dimensions according to ISO 529 standard with 12.5mm shank and 10.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications.
Product Specifications
| Connection Diameter (Inch) | 0.4921" |
| Overall Length (Inch) | 4.0157" |
| Clamping Width (mm) | 10mm |
| Thread Diameter (mm) | 15.875mm |
| No of Flutes | 3 |
| Clamping Length | 13 |
| Thread Diameter Size | 5/8 |
| Threading Length (mm) | 24mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 2B |
| Cutting Direction | Right Hand |
| Coating | Steam Tempered |
| Tap Chamfer Style | B 3.5-5 |
| Surface Color | Black |
| Thread Form | UNC-Unified Coarse |
| Country of origin | India |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
Dormer
Thread Size (Inch):
5/8"
Thread Limit:
2B
Number of Flutes:
3
Thread Standard:
ISO 529
Finish/Coating:
Steam Tempered
Material:
HSS-E-PM
Through Coolant:
No
Cutting Direction:
Right Hand
interval quantity:
1
