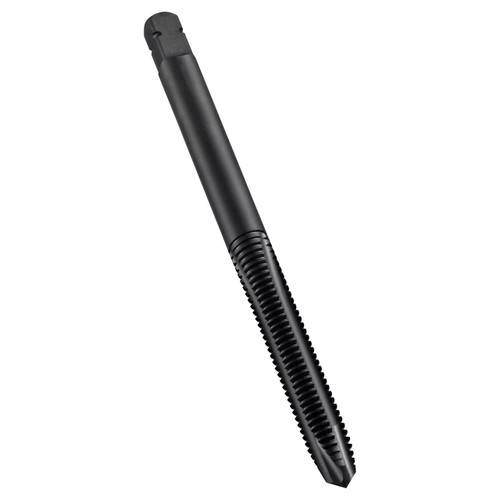

Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for Unified National Coarse thread UNC 7/16" with 14 TPI and 2B class of fit, dimensions according to ISO 529 standard with 8.0mm shank and 6.3mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications.
| Connection Diameter (Inch) | 0.315" |
| Overall Length (Inch) | 3.3465" |
| Clamping Width (mm) | 6.3mm |
| Thread Diameter (mm) | 11.112mm |
| No of Flutes | 3 |
| Clamping Length | 9 |
| Thread Diameter Size | 7/16 |
| Threading Length (mm) | 19mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 2B |
| Cutting Direction | Right Hand |
| Coating | Steam Tempered |
| Tap Chamfer Style | B 3.5-5 |
| Surface Color | Black |
| Thread Form | UNC-Unified Coarse |
| Country of origin | India |
