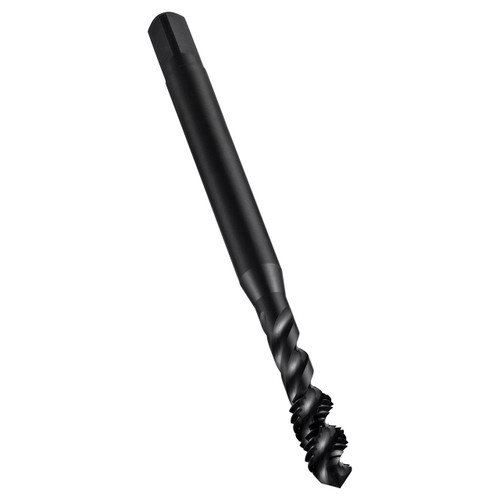

Dormer E0338-36 | 0.1772" Diameter x 2.0866" OAL 3 Flute Steam Tempered Coated Spiral Flute Tap

$36.79
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15024335
UPC:
7320760570081
Weight:
0.29 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Fine thread UNF 8 with 36 TPI and 2B class of fit, dimensions according to ISO 529 standard with 4.5mm shank and 3.55mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications.


Product Specifications
Connection Diameter (Inch)0.1772"
Overall Length (Inch)2.0866"
Clamping Width (mm)3.55mm
Thread Diameter (mm)4.166mm
No of Flutes3
Flute Helix Angle45
Usable Length (mm)17mm
Clamping Length6
Thread Diameter Size8
Threading Length (mm)7mm
Material CodeHSS-E-PM
Thread Tolerance Class2B
Cutting DirectionRight Hand
CoatingSteam Tempered
Tap Chamfer StyleC 2-3
Surface ColorBlack
Thread FormUNF-Unified Fine
