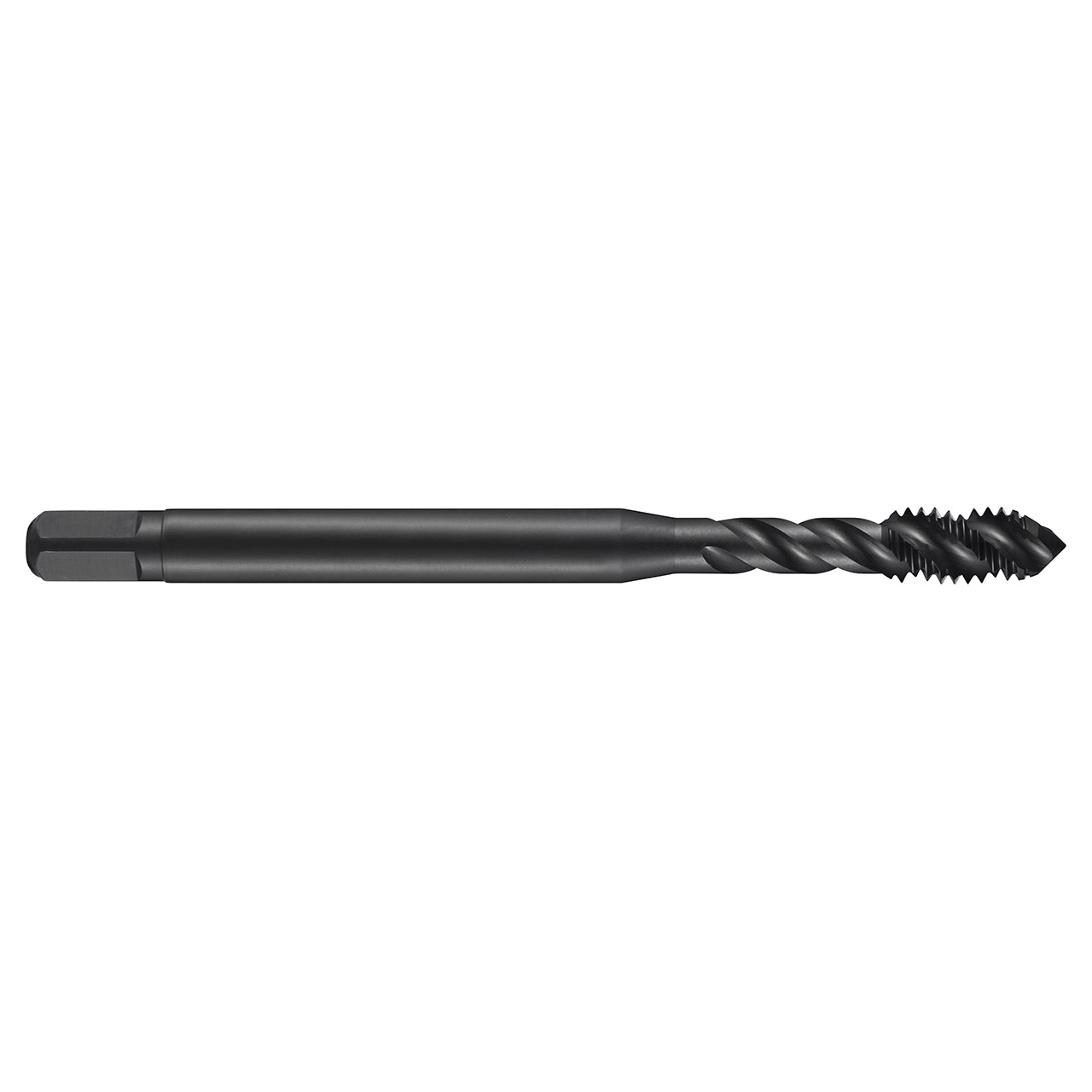

Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Fine thread UNF 3/4" with 16 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.5900" shank and 0.4420" square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications.
Product Specifications
| Connection Diameter (Inch) | 0.59" |
| Overall Length (Inch) | 4.25" |
| No of Flutes | 3 |
| Flute Helix Angle | 45 |
| Thread Diameter Size | 3/4 |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 3B |
| Threading Length (Inch) | 0.8858" |
| Cutting Direction | Right Hand |
| Coating | Steam Tempered |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Black |
| Thread Form | UNF-Unified Fine |
