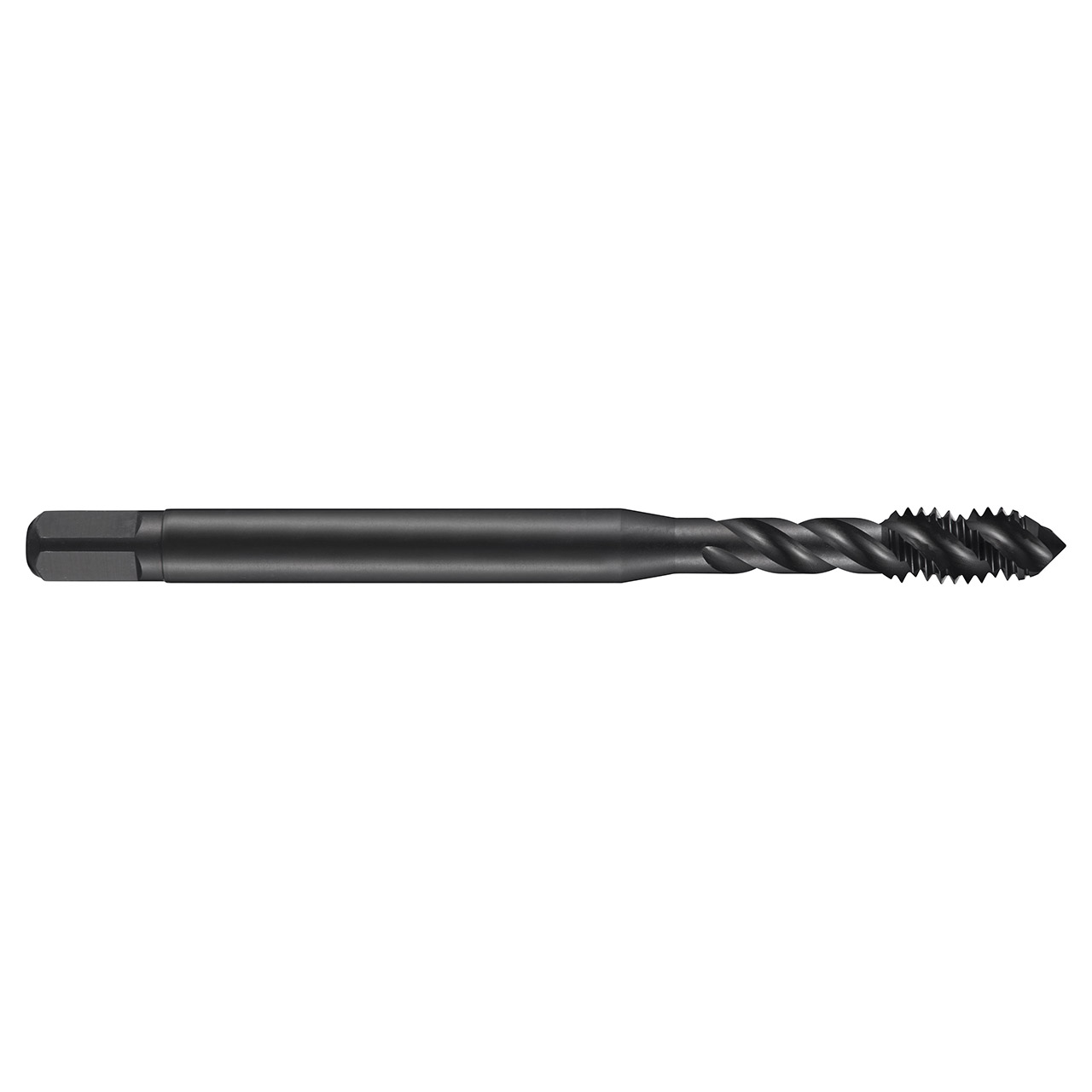

Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for British Standard Pipe thread G 3/4" with 14 TPI and Normal class of fit, dimensions according to DORMER-ISO standard with 20.0mm shank and 16.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications.
Product Specifications
| Connection Diameter (Inch) | 0.7874" |
| Overall Length (Inch) | 5.5118" |
| Clamping Width (mm) | 16mm |
| Thread Diameter (mm) | 26.441mm |
| No of Flutes | 4 |
| Flute Helix Angle | 45 |
| Clamping Length | 20 |
| Thread Diameter Size | 3/4 |
| Threading Length (mm) | 28mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | Normal |
| Cutting Direction | Right Hand |
| Coating | Steam Tempered |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Black |
| Thread Form | G-British standard pipe fastening-G series |
