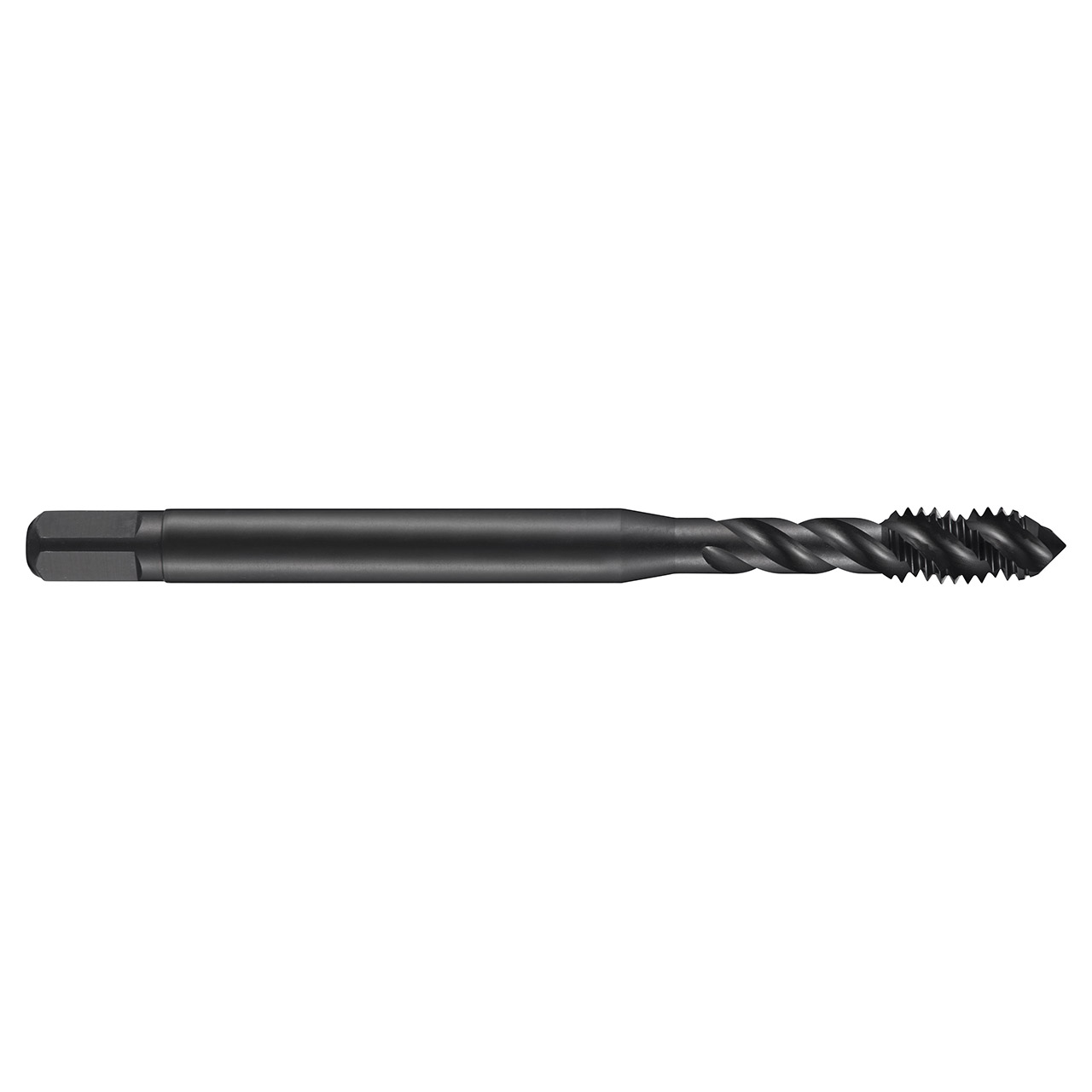

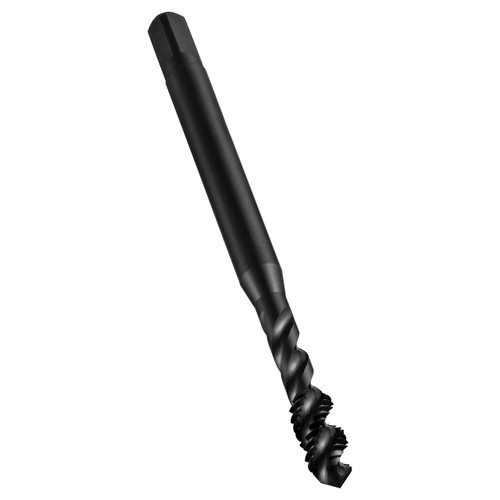

Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for British Standard Pipe thread G 3/8" with 19 TPI and Normal class of fit, dimensions according to DORMER-ISO standard with 12.5mm shank and 10.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications.
Product Specifications
| Connection Diameter (Inch) | 0.4921" |
| Overall Length (Inch) | 3.937" |
| Clamping Width (mm) | 10mm |
| Thread Diameter (mm) | 16.662mm |
| No of Flutes | 4 |
| Flute Helix Angle | 45 |
| Clamping Length | 13 |
| Thread Diameter Size | 3/8 |
| Threading Length (mm) | 21mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | Normal |
| Cutting Direction | Right Hand |
| Coating | Steam Tempered |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Black |
| Thread Form | G-British standard pipe fastening-G series |
