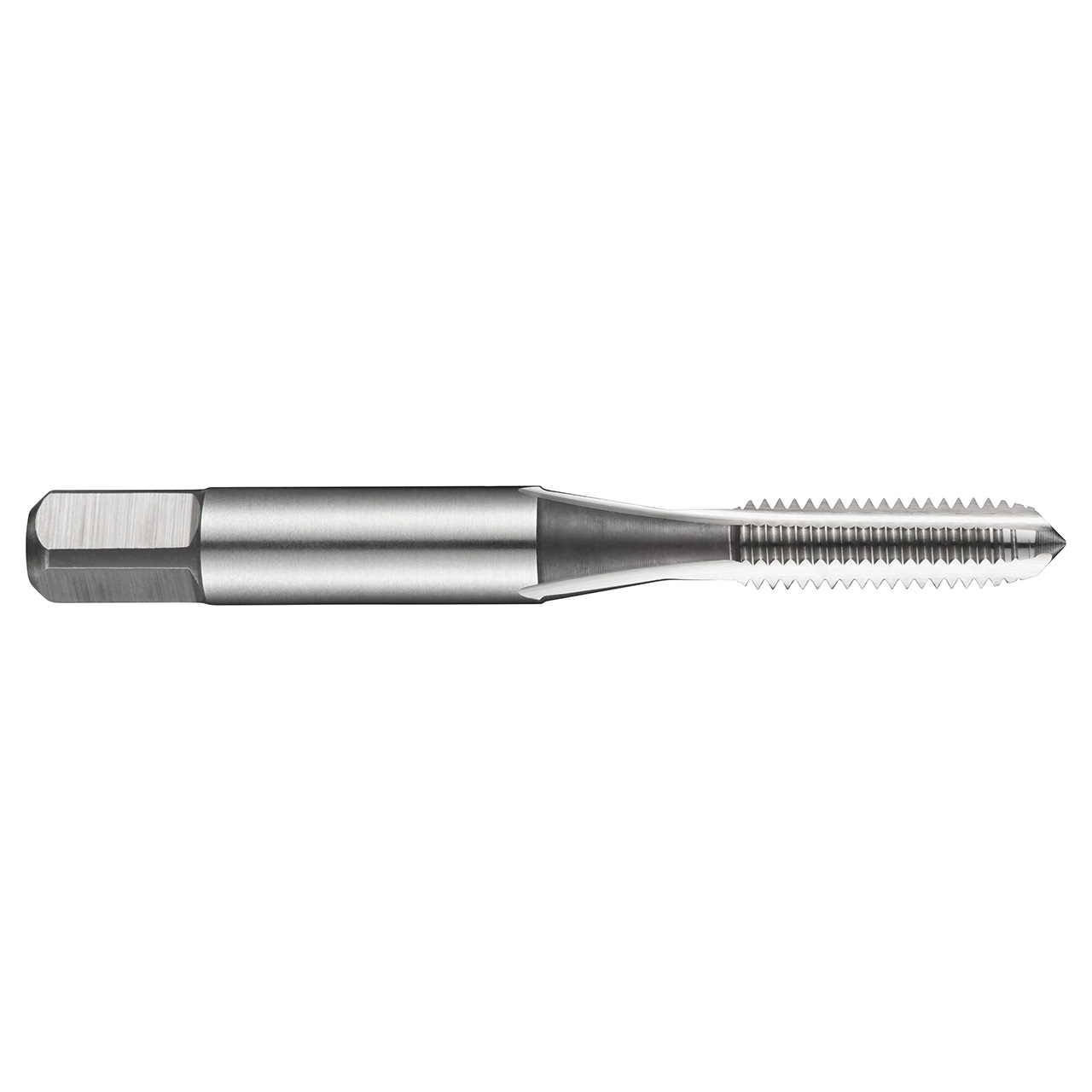

Straight flute serial tap NO3 with a 2-3xP semi-bottoming lead, for ISO-Metric Fine thread M15 with 1.00mm pitch and 6H class of fit, dimensions according to DIN 2181 standard with 12.0mm shank and 9.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and non-ferrous metals.
Product Specifications
| Connection Diameter (Inch) | 0.4724" |
| Overall Length (Inch) | 2.7559" |
| Clamping Width (mm) | 9mm |
| No of Flutes | 4 |
| Thread Pitch (mm) | 1mm |
| Thread Diameter Size | 15 |
| Threading Length (mm) | 16mm |
| Material Code | HSS |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Bright Silver |
| Thread Form | MF-Metric fine |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
