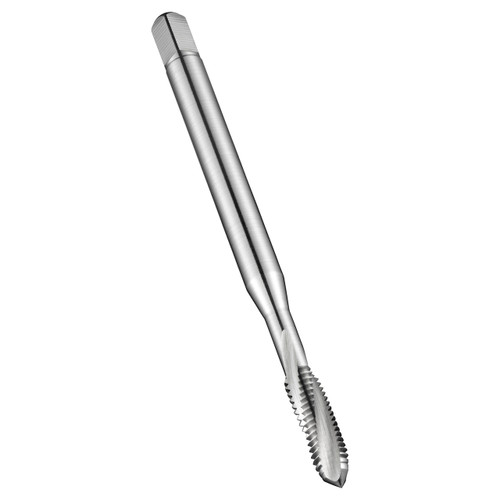

Dormer E207M2 | 0.1102" Diameter x 1.7717" OAL 3 Flute Bright Coated Spiral Flute Tap

$29.12
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15022358
Weight:
0.14 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M2 with 0.40mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 2.8mm shank and 2.1mm square drive, powder metallurgical HSS-E with bright finish and 15° helix angle for 1.5xD blind hole threading in alloy steel.


Product Specifications
Connection Diameter (Inch)0.1102"
Overall Length (Inch)1.7717"
Clamping Width (mm)2.1mm
No of Flutes3
Flute Helix Angle15
Usable Length (mm)9mm
Thread Pitch (mm)0.4mm
Clamping Length5
Thread Diameter Size2
Threading Length (mm)4mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingBright
Tap Chamfer StyleC 2-3
Surface ColorBright Silver
Thread FormM-Metric coarse
