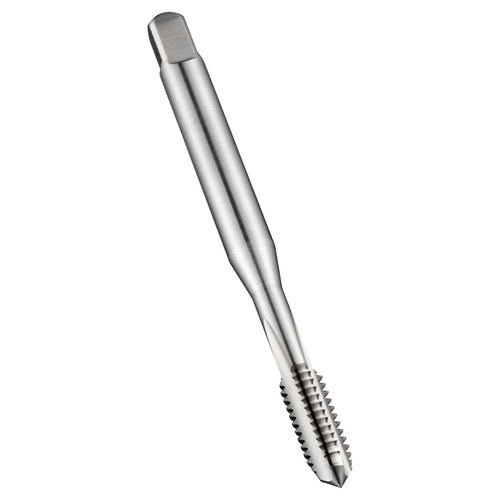

Straight flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Coarse thread UNC 1/4" with 20 TPI and 2B class of fit, dimensions according to DIN 371 standard with 7.0mm shank and 5.5mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel.
Product Specifications
| Connection Diameter (Inch) | 0.2756" |
| Overall Length (Inch) | 3.1496" |
| Clamping Width (mm) | 5.5mm |
| Thread Diameter (mm) | 6.35mm |
| No of Flutes | 3 |
| Usable Length (mm) | 30mm |
| Clamping Length | 8 |
| Thread Diameter Size | 1/4 |
| Threading Length (mm) | 16mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 2B |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Bright Silver |
| Thread Form | UNC-Unified Coarse |
| Country of origin | Brazil |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
interval quantity:
1
