Dormer 6305830 | M27x3.00mm Thread Size x 20.00mm Shank x 38.00mm Length x 160.00mm OAL M 6H 4 Flute Steam Tempered Coated HSS-E-PM E240 Spiral Point Tap

$520.00 $234.00
(You save $286.00)
Brand:
Dormer
Thread Limit:
6H
Number of Flutes:
4
Thread Standard:
DIN 376
Finish/Coating:
Steam Tempered
Material:
HSS-E-PM
Through Coolant:
No
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
15026632
UPC:
7320760664353
Weight:
0.92 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

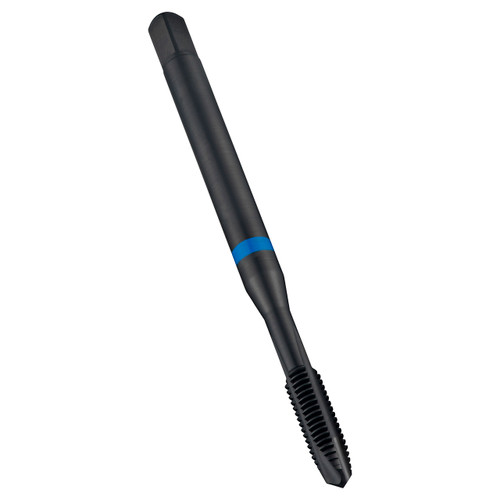

Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M27 with 3.00mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 20.0mm shank and 16.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in stainless steel.


Product Specifications
Connection Diameter (Inch)0.7874"
Overall Length (Inch)6.2992"
Clamping Width (mm)16mm
No of Flutes4
Thread Pitch (mm)3mm
Clamping Length19
Thread Diameter Size27
Threading Length (mm)38mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingSteam Tempered
Tap Chamfer StyleB 3.5-5
Surface ColorBlack
Thread FormM-Metric coarse
Country of originIndia
