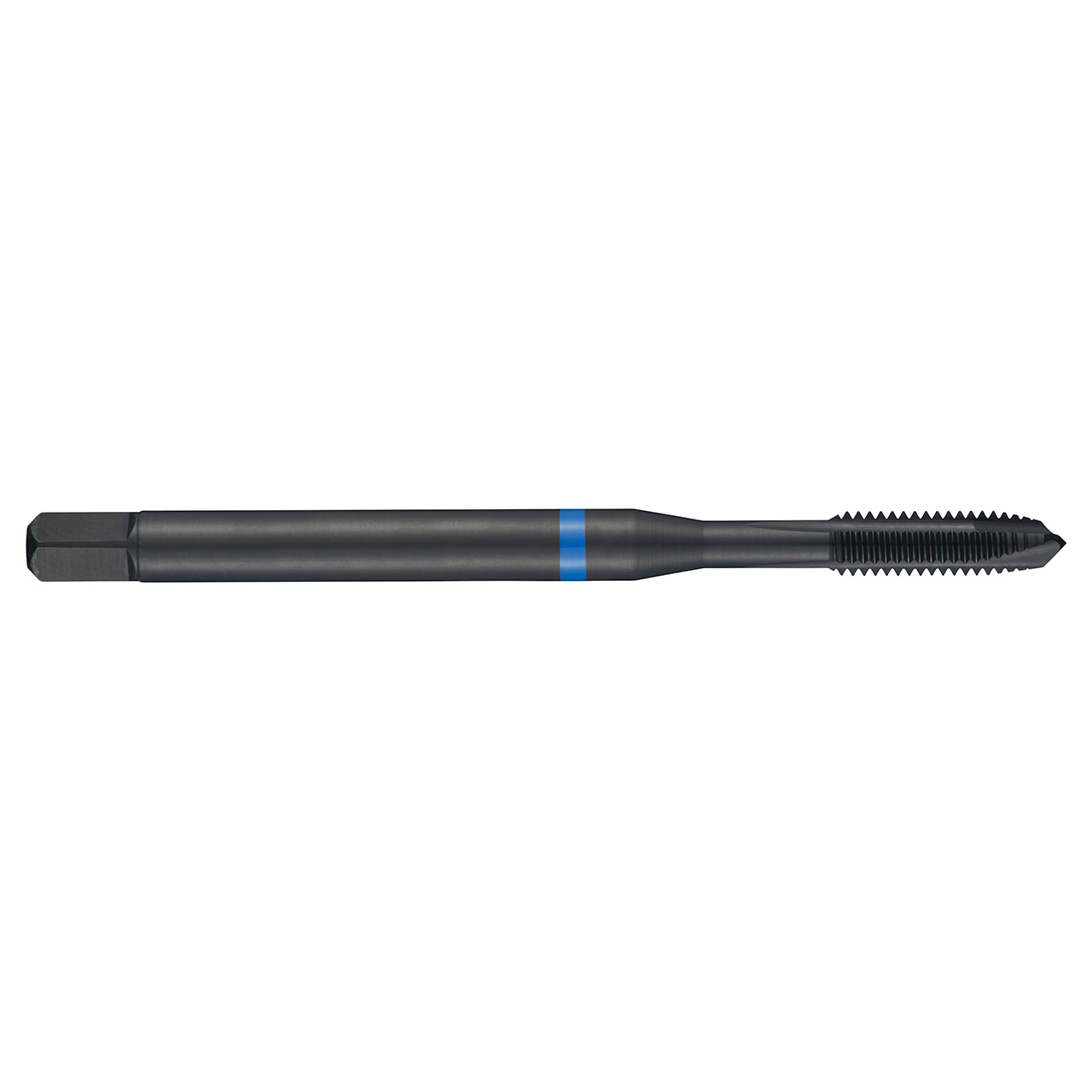

Dormer 6305836 | M8x1.25mm Size x 8.00mm Shank x 18.00mm Thread Length x 90.00mm OAL M 3 Flute Steam Tempered Coated HSS-E-PM Spiral Point Tap

$79.50 $35.78
(You save $43.72)
Brand:
Dormer
Thread Limit:
6H
Number of Flutes:
3
Thread Standard:
DIN 371
Finish/Coating:
Steam Tempered
Material:
HSS-E-PM
Through Coolant:
No
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
15026638
UPC:
7320760664414
Weight:
0.08 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M8 with 1.25mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 8.0mm shank and 6.2mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in stainless steel.


Product Specifications
Connection Diameter (Inch)0.315"
Overall Length (Inch)3.5433"
Clamping Width (mm)6.2mm
No of Flutes3
Usable Length (mm)35mm
Thread Pitch (mm)1.25mm
Clamping Length9
Thread Diameter Size8
Threading Length (mm)18mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingSteam Tempered
Tap Chamfer StyleB 3.5-5
Surface ColorBlack
Thread FormM-Metric coarse
Country of originIndia
