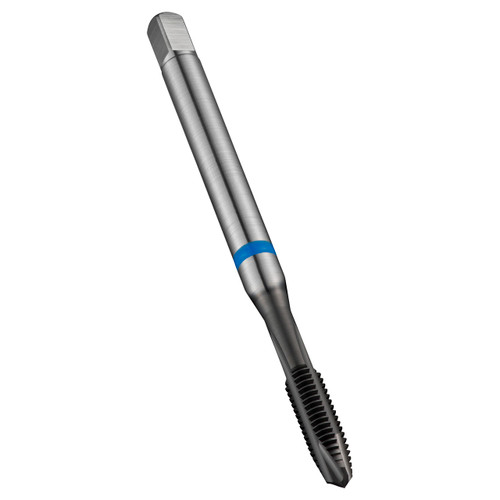

Dormer 6305838 | M12x1.75mm Thread Size x 9.00mm Shank x 23.00mm Length x 110.00mm OAL M 6H 4 Flute SUPER-B Coated HSS-E-PM E241 Spiral Point Tap

$182.00 $81.90
(You save $100.10)
Brand:
Dormer
Thread Limit:
6H
Number of Flutes:
4
Thread Standard:
DIN 376
Finish/Coating:
SUPER-B
Material:
HSS-E-PM
Through Coolant:
No
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
15026640
UPC:
7320760664438
Weight:
0.14 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M12 with 1.75mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 9.0mm shank and 7.0mm square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in ferritic, martensitic and austenitic stainless steel.


Product Specifications
Connection Diameter (Inch)0.3543"
Overall Length (Inch)4.3307"
Clamping Width (mm)7mm
No of Flutes4
Thread Pitch (mm)1.75mm
Clamping Length10
Thread Diameter Size12
Threading Length (mm)23mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingSUPER-B
Tap Chamfer StyleB 3.5-5
Surface ColorBlack - Deep Purple
Thread FormM-Metric coarse
Country of originIndia
