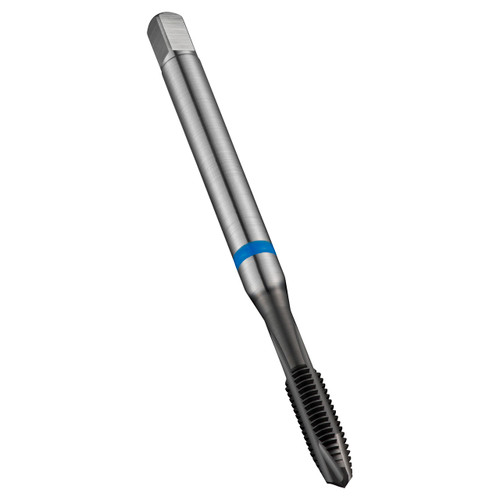

Dormer E241M6 | 0.2362" Diameter x 3.1496" OAL 3 Flute SUPER-B Coated Spiral Point Tap

$39.15
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15026648
UPC:
7320760664513
Weight:
0.59 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M6 with 1.00mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0mm shank and 4.9mm square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in ferritic, martensitic and austenitic stainless steel.


Product Specifications
Connection Diameter (Inch)0.2362"
Overall Length (Inch)3.1496"
Clamping Width (mm)4.9mm
No of Flutes3
Usable Length (mm)30mm
Thread Pitch (mm)1mm
Clamping Length8
Thread Diameter Size6
Threading Length (mm)15mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingSUPER-B
Tap Chamfer StyleB 3.5-5
Surface ColorBlack - Deep Purple
Thread FormM-Metric coarse
