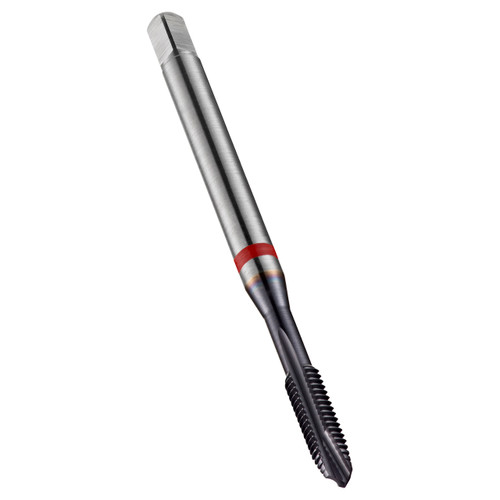

Spiral point tap Red Shark with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M6 with 1.00mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0mm shank and 4.9mm square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD through hole threading in plain carbon, alloy and tool steel.
Product Specifications
| Connection Diameter (Inch) | 0.2362" |
| Overall Length (Inch) | 3.1496" |
| Clamping Width (mm) | 4.9mm |
| No of Flutes | 3 |
| Usable Length (mm) | 30mm |
| Thread Pitch (mm) | 1mm |
| Clamping Length | 8 |
| Thread Diameter Size | 6 |
| Threading Length (mm) | 15mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6HX |
| Cutting Direction | Right Hand |
| Coating | TiAlN/Top |
| Tap Chamfer Style | B 3.5-5 |
| Surface Color | Black - Deep Purple |
| Thread Form | M-Metric coarse |
| Country of origin | India |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
Dormer
Thread Limit:
6HX
Number of Flutes:
3
Thread Standard:
DIN 371
Finish/Coating:
TiAlN/Top
Material:
HSS-E-PM
Through Coolant:
No
Cutting Direction:
Right Hand
interval quantity:
1
