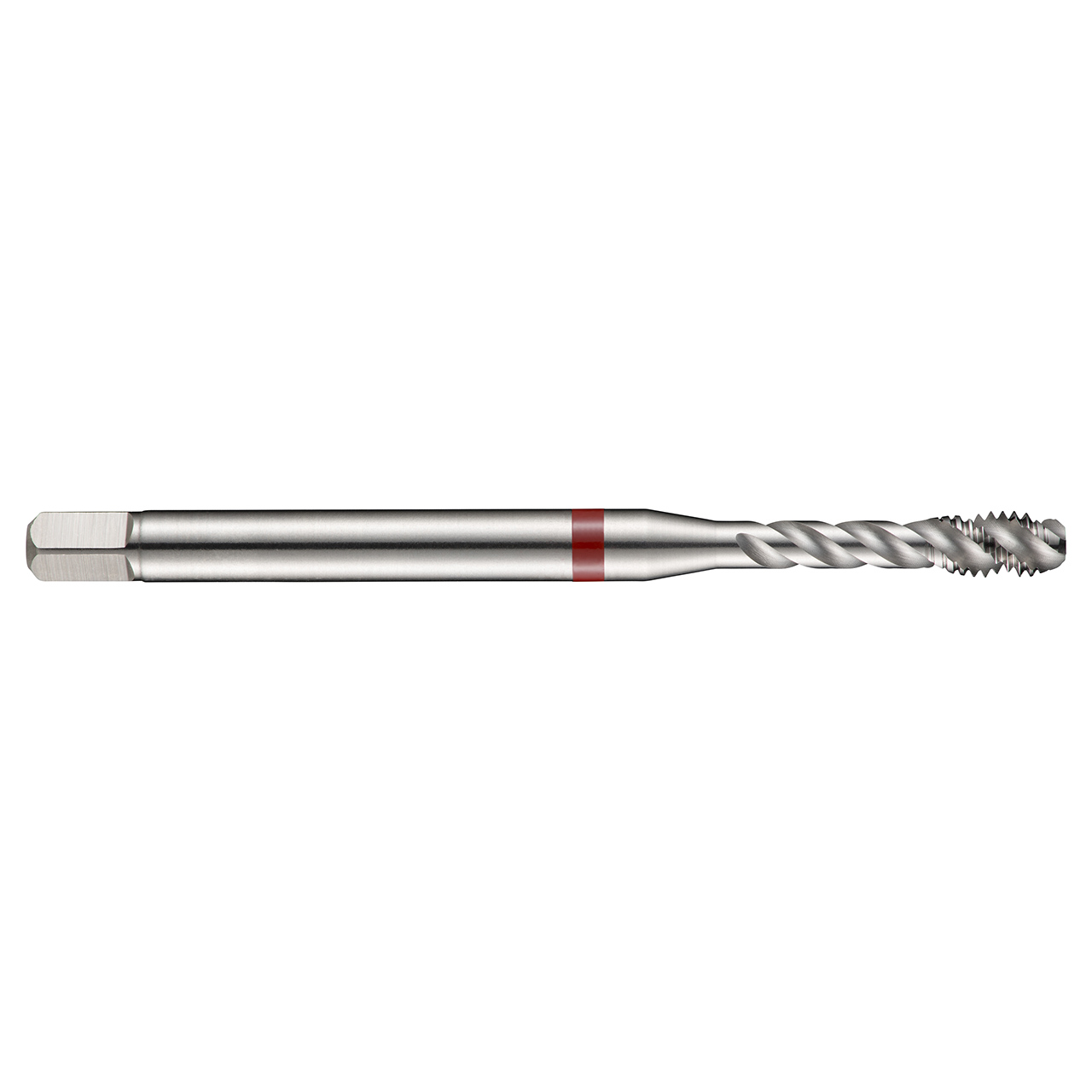

Dormer E260M6 | 0.2362" Diameter x 3.1496" OAL 3 Flute Bright Coated Spiral Flute Tap

$32.63
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15026727
Weight:
0.56 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral flute tap Red Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M6 with 1.00mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0mm shank and 4.9mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in plain carbon, alloy and tool steel.


Product Specifications
Connection Diameter (Inch)0.2362"
Overall Length (Inch)3.1496"
Clamping Width (mm)4.9mm
No of Flutes3
Flute Helix Angle45
Usable Length (mm)30mm
Thread Pitch (mm)1mm
Clamping Length8
Thread Diameter Size6
Threading Length (mm)10mm
Material CodeHSS-E-PM
Thread Tolerance Class6HX
Cutting DirectionRight Hand
CoatingBright
Tap Chamfer StyleC 2-3
Surface ColorBright Silver
Thread FormM-Metric coarse
