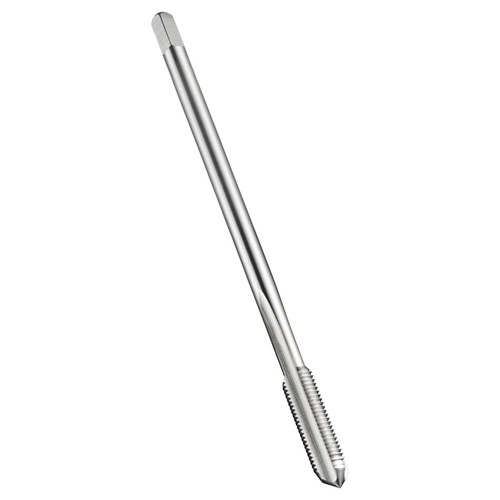

Dormer 5975197 | M11x1.00mm Thread Size x 8.00mm Shank x 20.00mm Length x 90.00mm OAL MF 6H 3 Flute Bright Coated HSS-E-PM E268 Straight Flute Tap

$156.00 $70.20
(You save $85.80)
Brand:
Dormer
Thread Limit:
6H
Overall Length (Decimal Inch):
3.5433"
Overall Length (mm):
90.00mm
Number of Flutes:
3
Material:
HSS-E-PM
Finish/Coating:
Bright
Thread Direction:
Right Hand
Through Coolant:
No
Thread Standard:
DIN 374
interval quantity:
1
SKU:
15022484
UPC:
7320760088500
Weight:
0.09 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Straight flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric Fine thread M11 with 1.00mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 8.0mm shank and 6.2mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel.


Product Specifications
Connection Diameter (Inch)0.315"
Overall Length (Inch)3.5433"
Clamping Width (mm)6.2mm
No of Flutes3
Thread Pitch (mm)1mm
Clamping Length9
Thread Diameter Size11
Threading Length (mm)20mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingBright
Tap Chamfer StyleC 2-3
Surface ColorBright Silver
Thread FormMF-Metric fine
Country of originIndia
