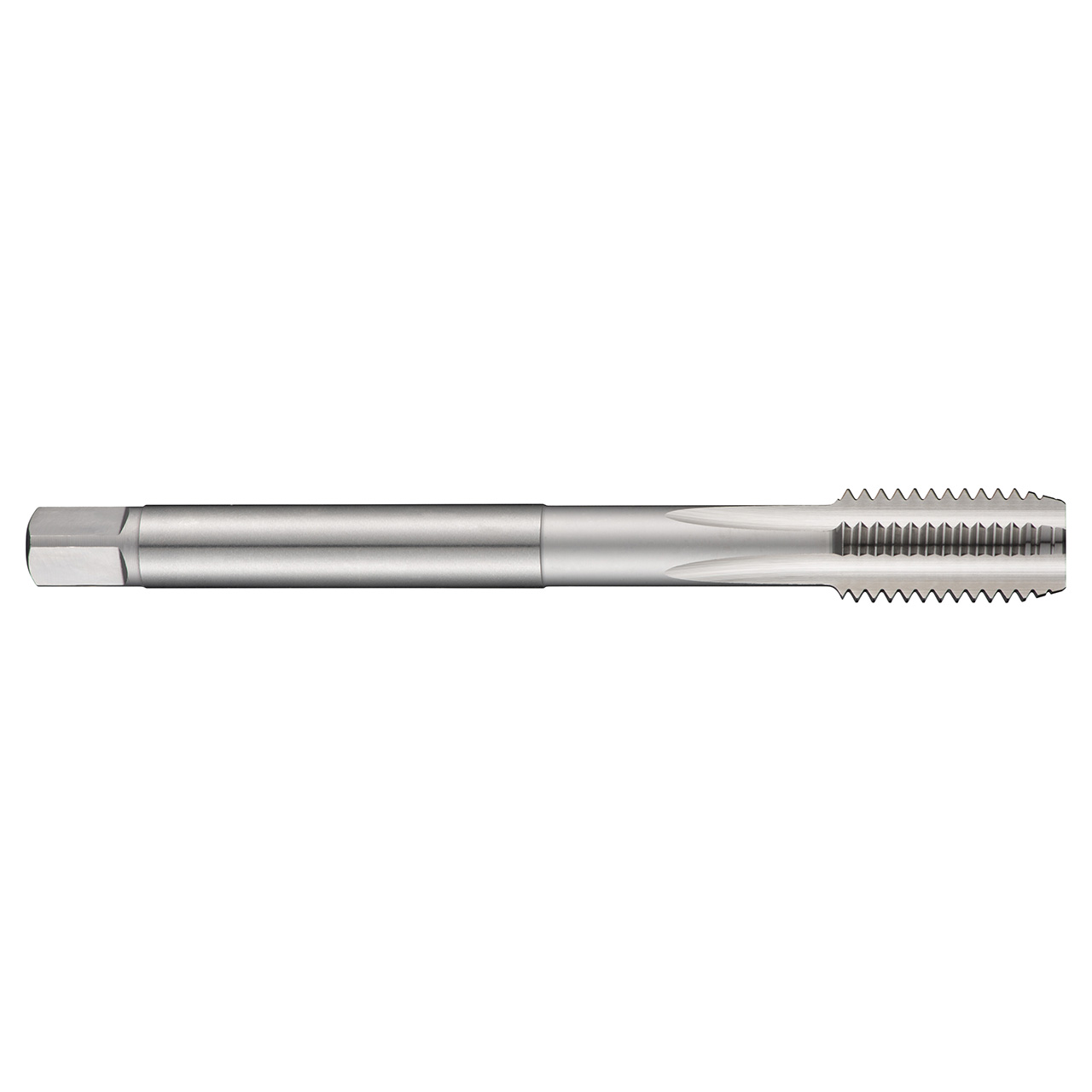

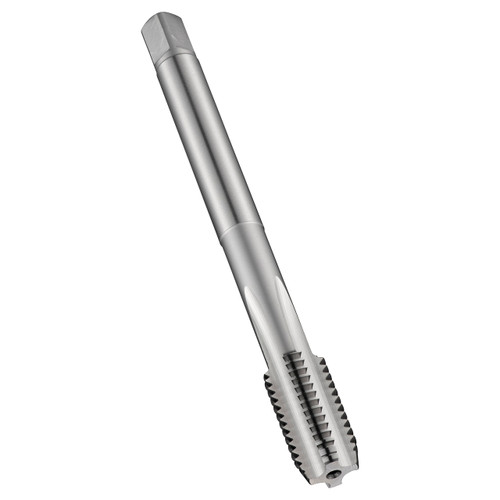

Straight flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Coarse thread UNC 1.1/8" with 7 TPI and 2B class of fit, dimensions according to DIN 376 standard with 22.0mm shank and 18.0mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel.
Product Specifications
| Connection Diameter (Inch) | 0.8661" |
| Overall Length (Inch) | 7.0866" |
| Clamping Width (mm) | 18mm |
| Thread Diameter (mm) | 28.58mm |
| No of Flutes | 4 |
| Clamping Length | 21 |
| Thread Diameter Size | 1.1/8 |
| Threading Length (mm) | 45mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 2B |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Bright Silver |
| Thread Form | UNC-Unified Coarse |
