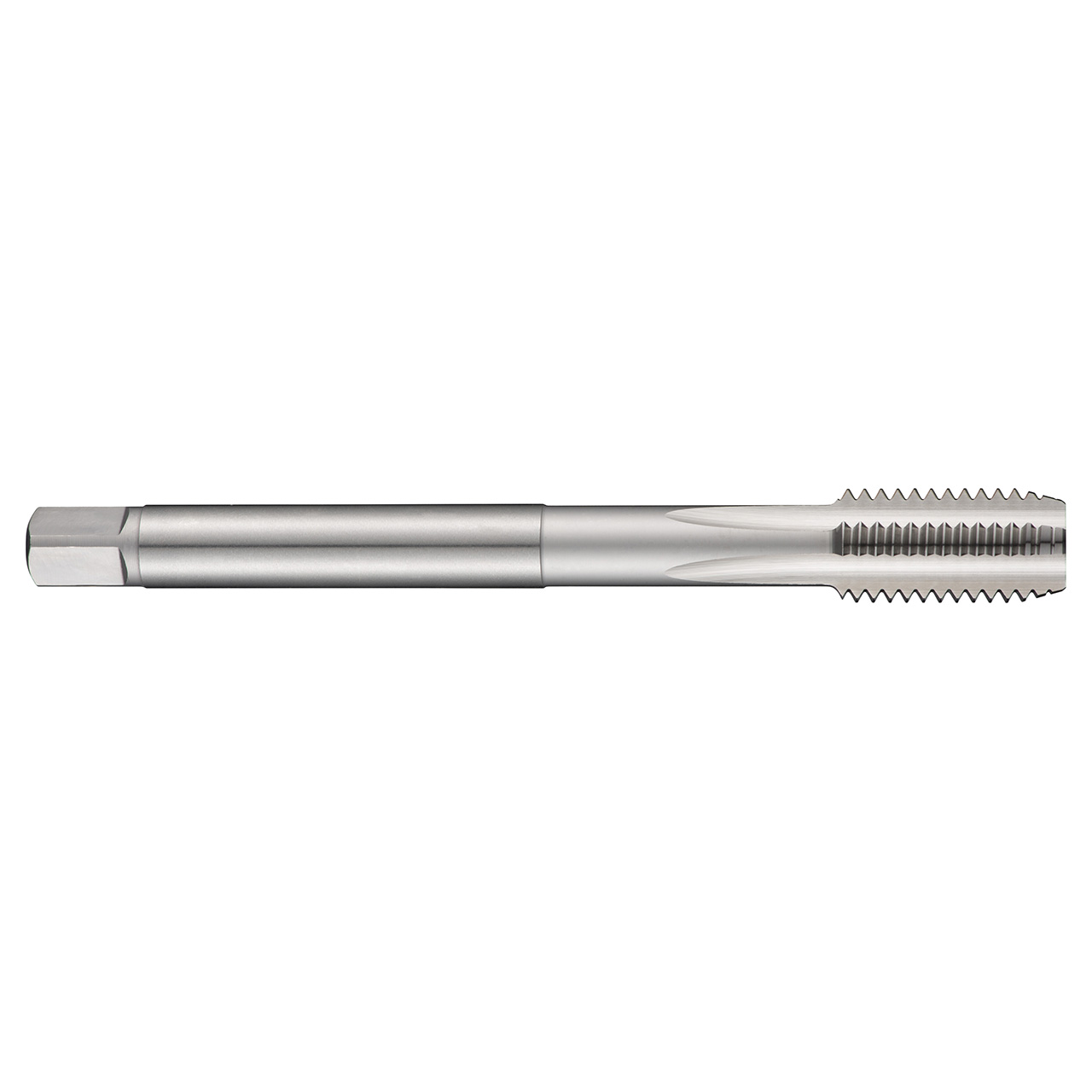

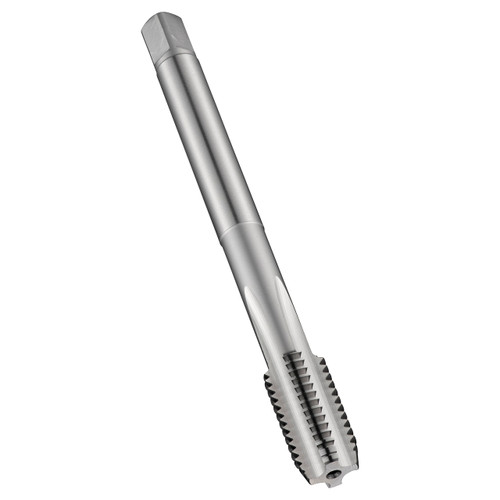

Straight flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Coarse thread UNC 3/8" with 16 TPI and 2B class of fit, dimensions according to DIN 376 standard with 7.0mm shank and 5.5mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel.
Product Specifications
| Connection Diameter (Inch) | 0.2756" |
| Overall Length (Inch) | 3.937" |
| Clamping Width (mm) | 5.5mm |
| Thread Diameter (mm) | 9.53mm |
| No of Flutes | 3 |
| Clamping Length | 8 |
| Thread Diameter Size | 3/8 |
| Threading Length (mm) | 24mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 2B |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Bright Silver |
| Thread Form | UNC-Unified Coarse |
