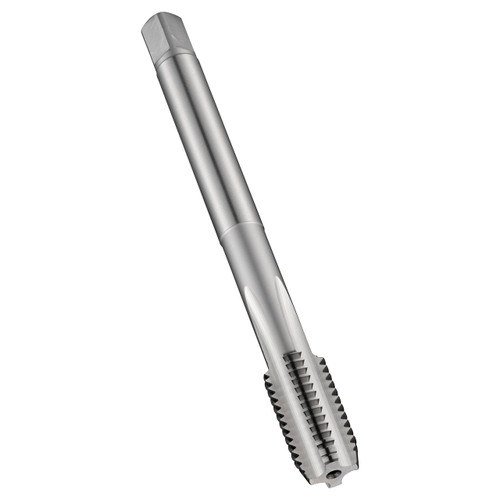

Dormer 5975035 | UNC 7/8"-9 Thread Size x 18.00mm Shank x 34.00mm Length x 140.00mm OAL 2B 4 Flute Bright Coated HSS-E-PM E275 Straight Flute Tap

$426.00 $191.70
(You save $234.30)
Brand:
Dormer
Thread Size (Inch):
7/8"
Thread Limit:
2B
Overall Length (Decimal Inch):
5.5118"
Overall Length (mm):
140.00mm
Number of Flutes:
4
Material:
HSS-E-PM
Finish/Coating:
Bright
Thread Direction:
Right Hand
Through Coolant:
No
Thread Standard:
DIN 376
interval quantity:
1
SKU:
15022544
UPC:
7320760089453
Weight:
0.57 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Straight flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Coarse thread UNC 7/8" with 9 TPI and 2B class of fit, dimensions according to DIN 376 standard with 18.0mm shank and 14.5mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel.


Product Specifications
Connection Diameter (Inch)0.7087"
Overall Length (Inch)5.5118"
Clamping Width (mm)14.5mm
Thread Diameter (mm)22.23mm
No of Flutes4
Clamping Length17
Thread Diameter Size7/8
Threading Length (mm)34mm
Material CodeHSS-E-PM
Thread Tolerance Class2B
Cutting DirectionRight Hand
CoatingBright
Tap Chamfer StyleC 2-3
Surface ColorBright Silver
Thread FormUNC-Unified Coarse
Country of originIndia
