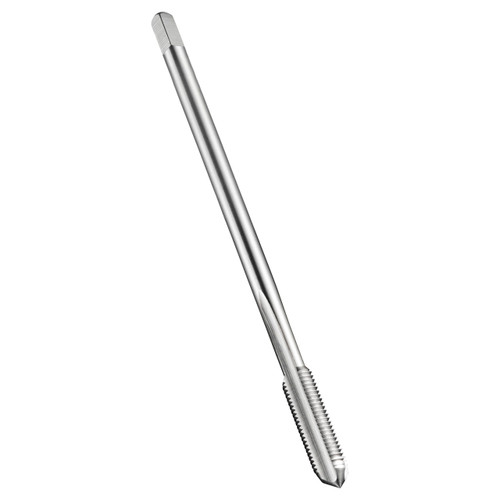

Dormer E2783/8 | 0.2756" Diameter x 3.937" OAL 3 Flute Bright Coated Straight Flute Tap

$48.60
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15022553
UPC:
7320760089637
Weight:
1.27 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Straight flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Fine thread UNF 3/8" with 24 TPI and 2B class of fit, dimensions according to DIN 374 standard with 7.0mm shank and 5.5mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel.


Product Specifications
Connection Diameter (Inch)0.2756"
Overall Length (Inch)3.937"
Clamping Width (mm)5.5mm
Thread Diameter (mm)9.53mm
No of Flutes3
Clamping Length8
Thread Diameter Size3/8
Threading Length (mm)24mm
Material CodeHSS-E-PM
Thread Tolerance Class2B
Cutting DirectionRight Hand
CoatingBright
Tap Chamfer StyleC 2-3
Surface ColorBright Silver
Thread FormUNF-Unified Fine
