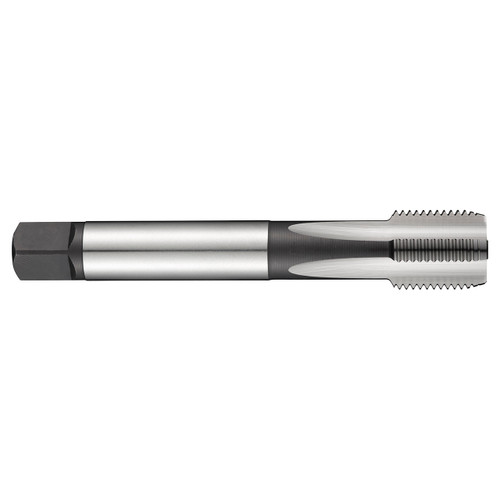

Straight flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for British Standard Pipe thread G 1/2" with 14 TPI and Normal class of fit, dimensions according to DIN 5156 standard with 16.0mm shank and 12.0mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel.
Product Specifications
| Connection Diameter (Inch) | 0.6299" |
| Overall Length (Inch) | 4.9213" |
| Clamping Width (mm) | 12mm |
| Thread Diameter (mm) | 20.96mm |
| No of Flutes | 4 |
| Clamping Length | 15 |
| Thread Diameter Size | 1/2 |
| Threading Length (mm) | 24mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | Normal |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Bright Silver |
| Thread Form | G-British standard pipe fastening-G series |
