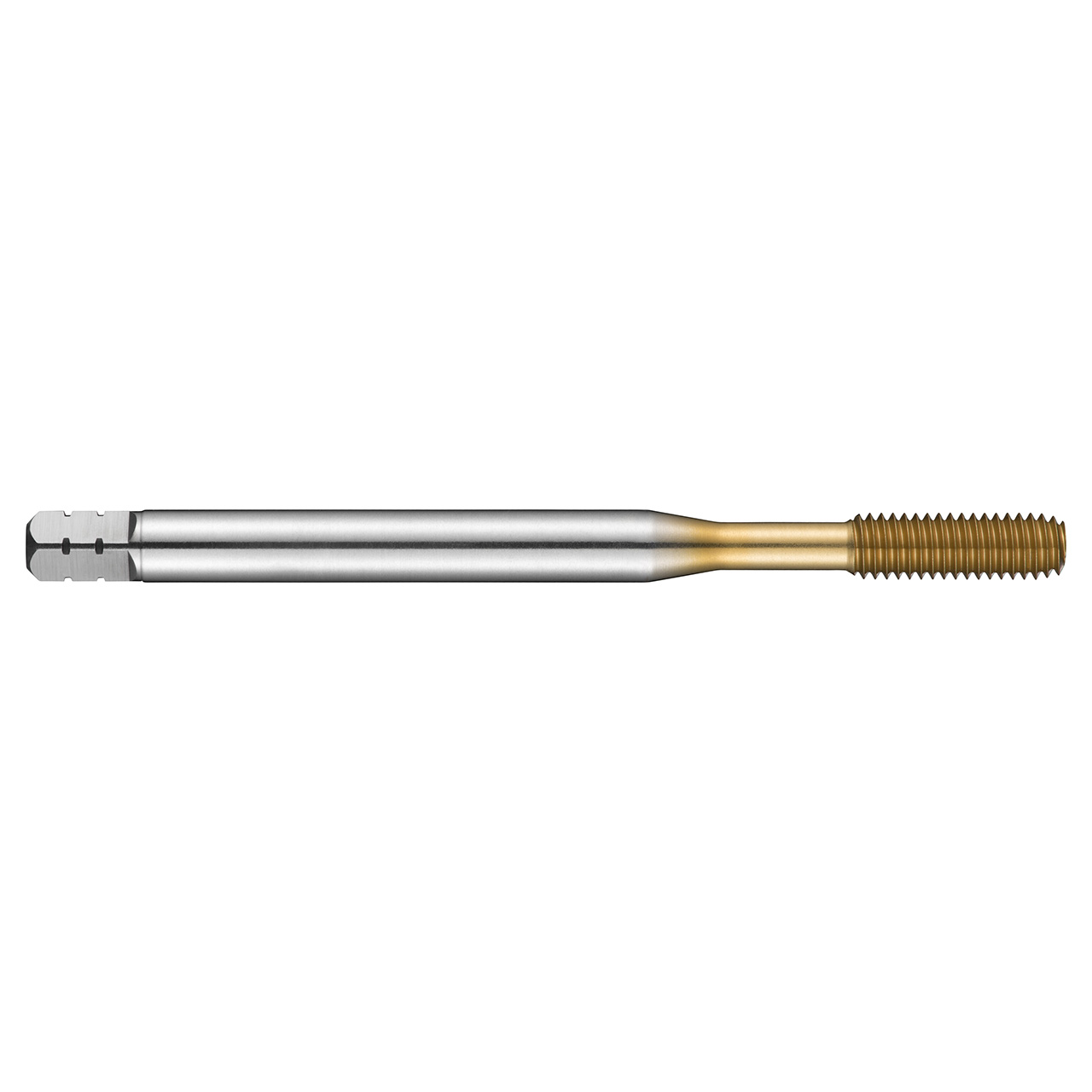

Thread forming tap with chamfer form E with a 1.5-2xP bottoming lead, for ISO-Metric thread M10 with 1.50mm pitch and 6GX class of fit, dimensions according to DIN 2174 standard with 10.0mm shank and 8.0mm square drive, cobalt based HSS-E with TiN coating for 3xD blind hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium.
Product Specifications
| Connection Diameter (Inch) | 0.3937" |
| Overall Length (Inch) | 3.937" |
| Clamping Width (mm) | 8mm |
| No of Flutes | 5 |
| Usable Length (mm) | 39mm |
| Thread Pitch (mm) | 1.5mm |
| Clamping Length | 11 |
| Thread Diameter Size | 10 |
| Threading Length (mm) | 20mm |
| Material Code | HSS-E |
| Thread Tolerance Class | 6GX |
| Cutting Direction | Right Hand |
| Coating | TiN |
| Tap Chamfer Style | E 1.5-2 |
| Surface Color | Gold |
| Thread Form | M-Metric coarse |
