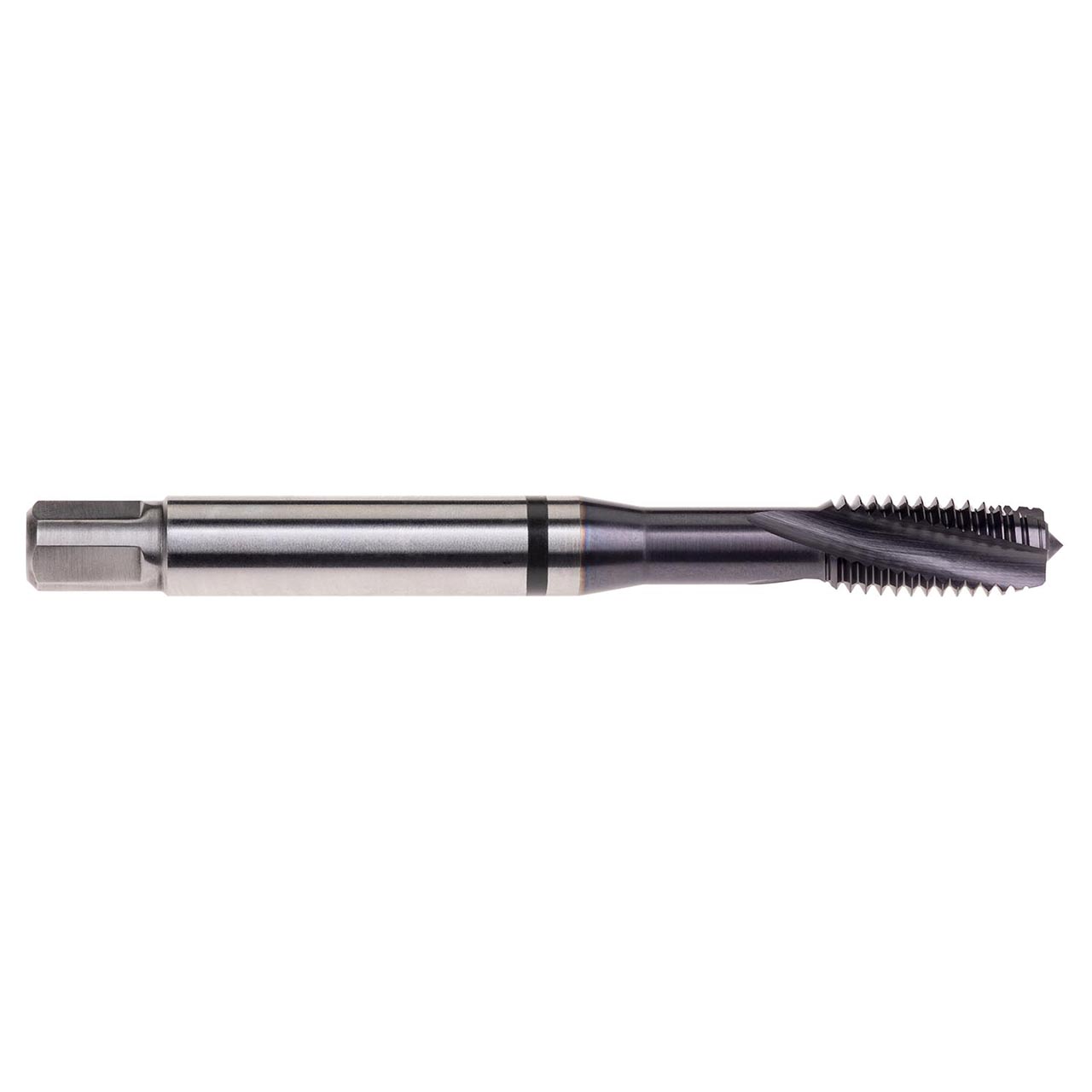

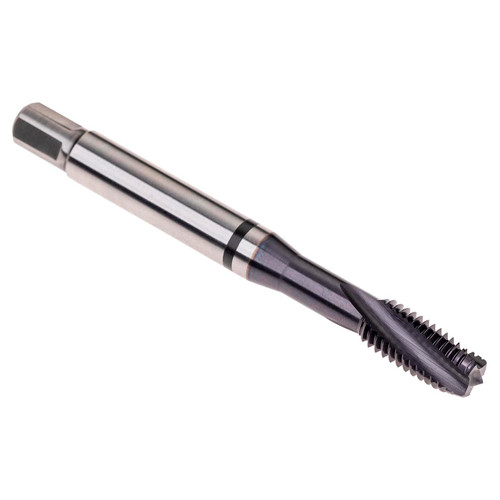

Designed for high performance through hole tapping in high strength and heat resistant workmaterials with hardness up to 45HRC. The TiAlN-Top coating combined with geometry that significantly increases cutting edge strength, provides excellent performance and consistency in hard and difficult to machine materials..
Product Specifications
| Connection Diameter (Inch) | 0.3543" |
| Overall Length (Inch) | 4.3307" |
| Clamping Width (mm) | 7mm |
| No of Flutes | 4 |
| Flute Helix Angle | 15 |
| Thread Pitch (mm) | 1.75mm |
| Clamping Length | 10 |
| Thread Diameter Size | 12 |
| Threading Length (mm) | 23mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6HX |
| Cutting Direction | Right Hand |
| Coating | TiAlN/Top |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Black - Deep Purple |
| Thread Form | M-Metric coarse |
| Country of origin | India |
