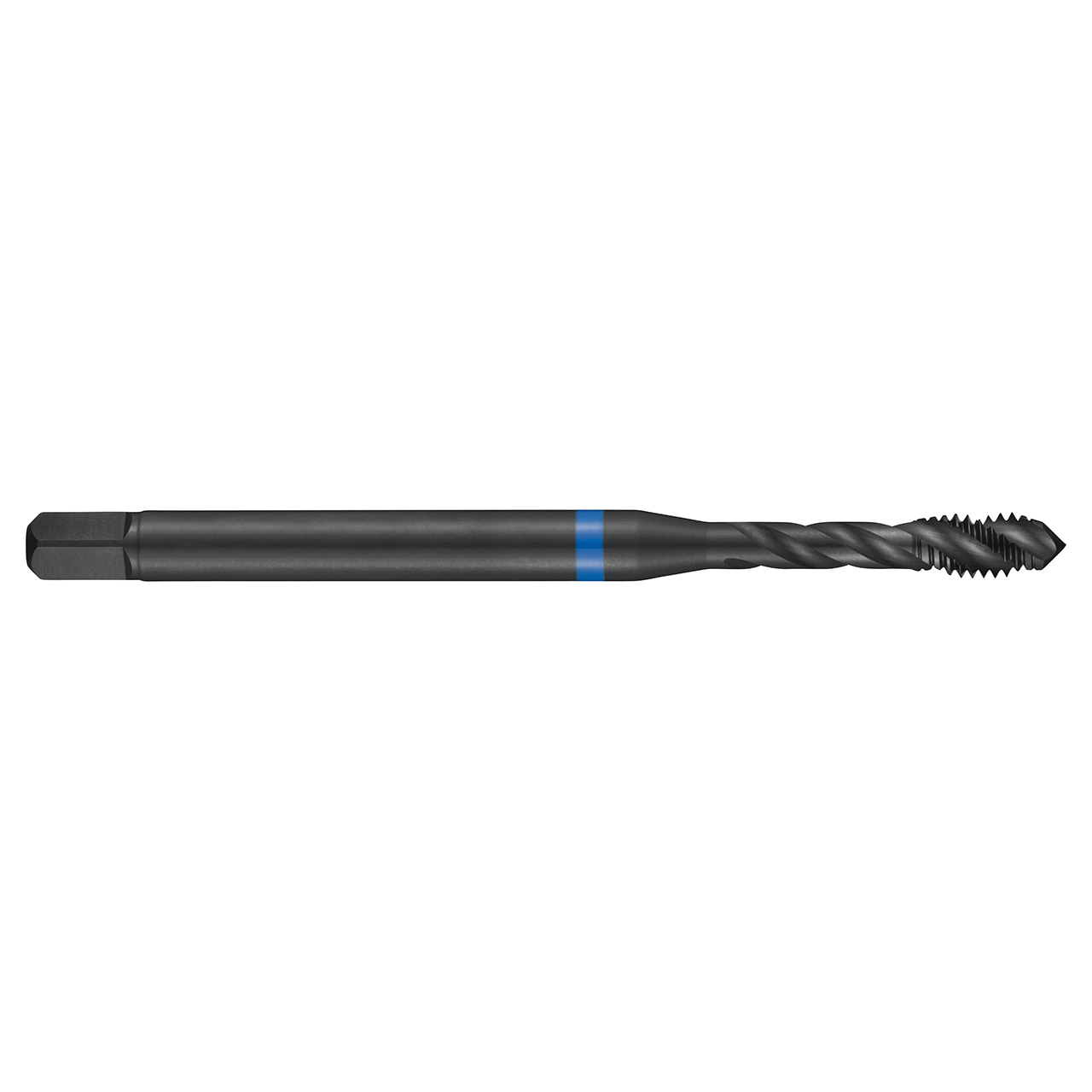

Spiral flute tap Blue Shark with chamfer form C with a 2-3xP semi-bottoming lead, for British Standard Pipe thread G 1/8" with 28 TPI and Normal class of fit, dimensions according to DIN 5156 standard with 7.0mm shank and 5.5mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 40° helix angle for 2xD blind hole threading in stainless steel.
Product Specifications
| Connection Diameter (Inch) | 0.2756" |
| Overall Length (Inch) | 3.5433" |
| Clamping Width (mm) | 5.5mm |
| Thread Diameter (mm) | 9.73mm |
| No of Flutes | 3 |
| Flute Helix Angle | 40 |
| Clamping Length | 8 |
| Thread Diameter Size | 1/8 |
| Threading Length (mm) | 12mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | Normal |
| Cutting Direction | Right Hand |
| Coating | Steam Tempered |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Black |
| Thread Form | G-British standard pipe fastening-G series |
