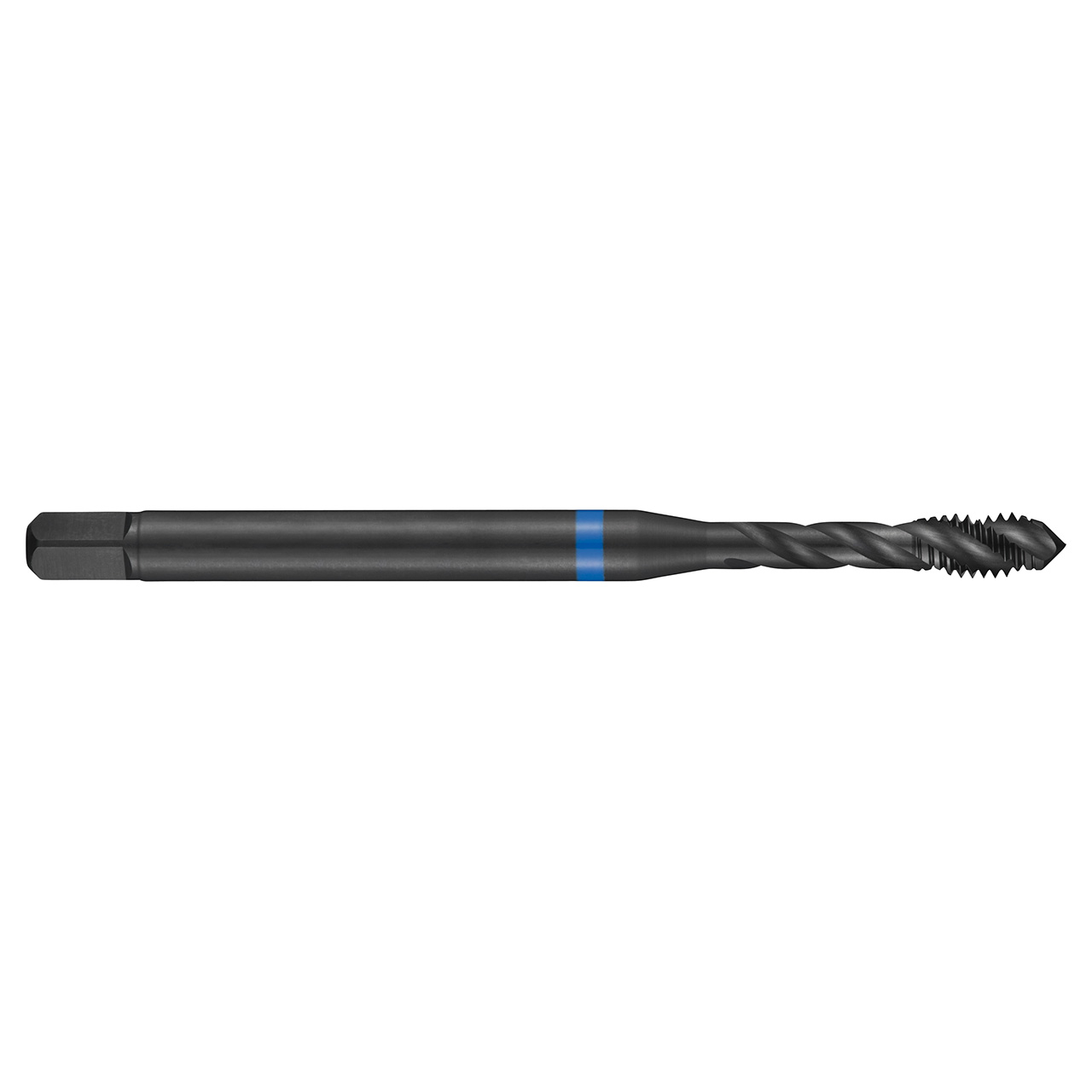

Dormer E238M8 | 0.315" Diameter x 3.5433" OAL 3 Flute Steam Tempered Coated Spiral Flute Tap

$33.71
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15026613
UPC:
7320760664162
Weight:
1.15 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral flute tap Blue Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M8 with 1.25mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 8.0mm shank and 6.2mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 40° helix angle for 2.5xD blind hole threading in stainless steel.


Product Specifications
Connection Diameter (Inch)0.315"
Overall Length (Inch)3.5433"
Clamping Width (mm)6.2mm
No of Flutes3
Flute Helix Angle40
Usable Length (mm)33mm
Thread Pitch (mm)1.25mm
Clamping Length9
Thread Diameter Size8
Threading Length (mm)12mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingSteam Tempered
Tap Chamfer StyleC 2-3
Surface ColorBlack
Thread FormM-Metric coarse
