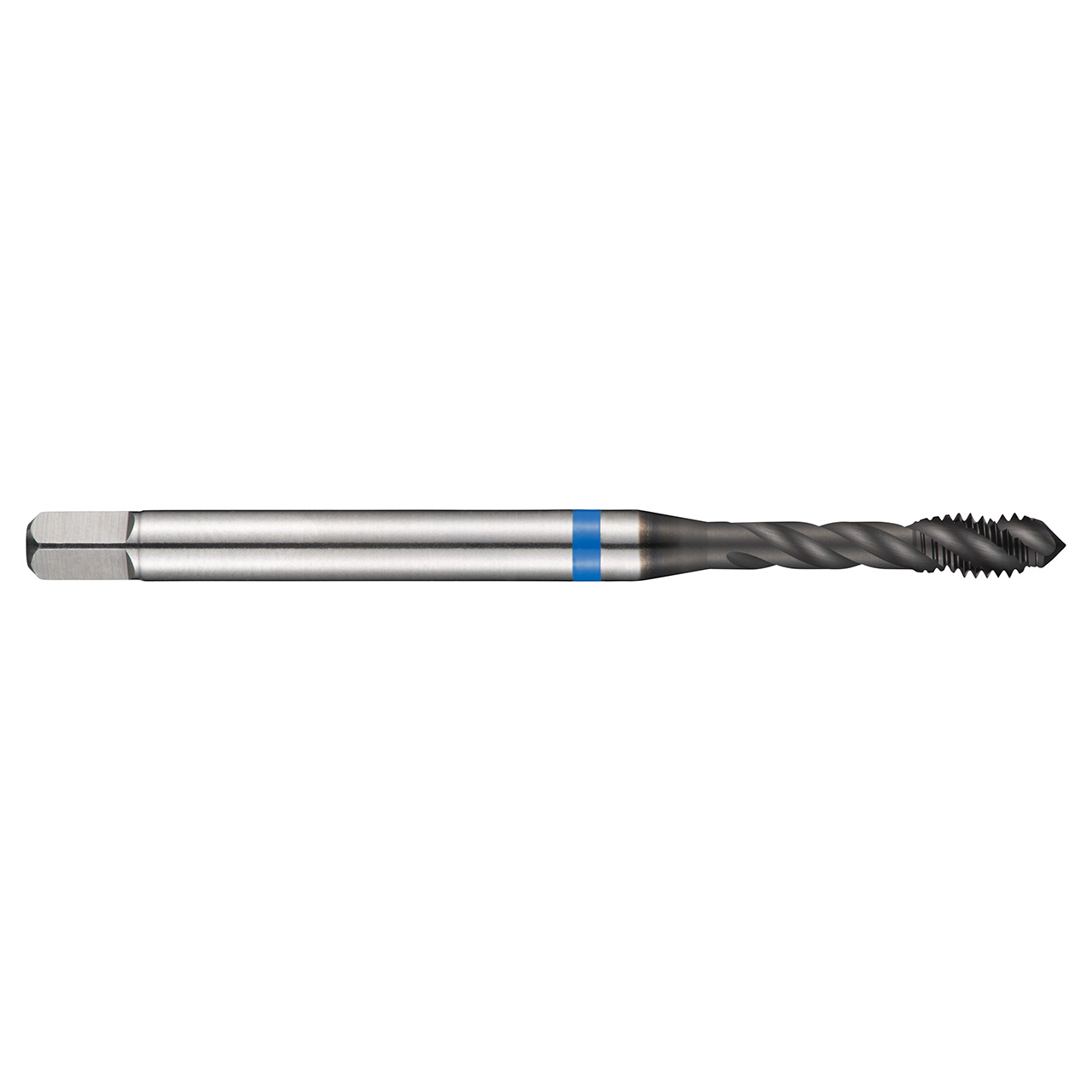

Dormer 6305821 | M8x1.25mm Thread Size x 8.00mm Shank x 12.00mm Length x 90.00mm OAL x 40 Degree Helix Angle M 6H 3 Flute SUPER-B Coated HSS-E-PM E239 Spiral Flute Tap

$127.00 $57.15
(You save $69.85)
Brand:
Dormer
Thread Limit:
6H
Number of Flutes:
3
Material:
HSS-E-PM
Finish/Coating:
SUPER-B
Flute Direction:
Right Hand
Overall Length (Decimal Inch):
3.5433"
Overall Length (mm):
90.00mm
interval quantity:
1
SKU:
15026623
UPC:
7320760664261
Weight:
0.07 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral flute tap Blue Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M8 with 1.25mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 8.0mm shank and 6.2mm square drive, powder metallurgical HSS-E with Super-B coating and 40 Degree helix angle for 2.5xD blind hole threading in ferritic, martensitic and austenitic stainless steel.


Product Specifications
Connection Diameter (Inch)0.315"
Overall Length (Inch)3.5433"
Clamping Width (mm)6.2mm
No of Flutes3
Flute Helix Angle40
Usable Length (mm)33mm
Thread Pitch (mm)1.25mm
Clamping Length9
Thread Diameter Size8
Threading Length (mm)12mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingSUPER-B
Tap Chamfer StyleC 2-3
Surface ColorBlack - Deep Purple
Thread FormM-Metric coarse
Country of originIndia
