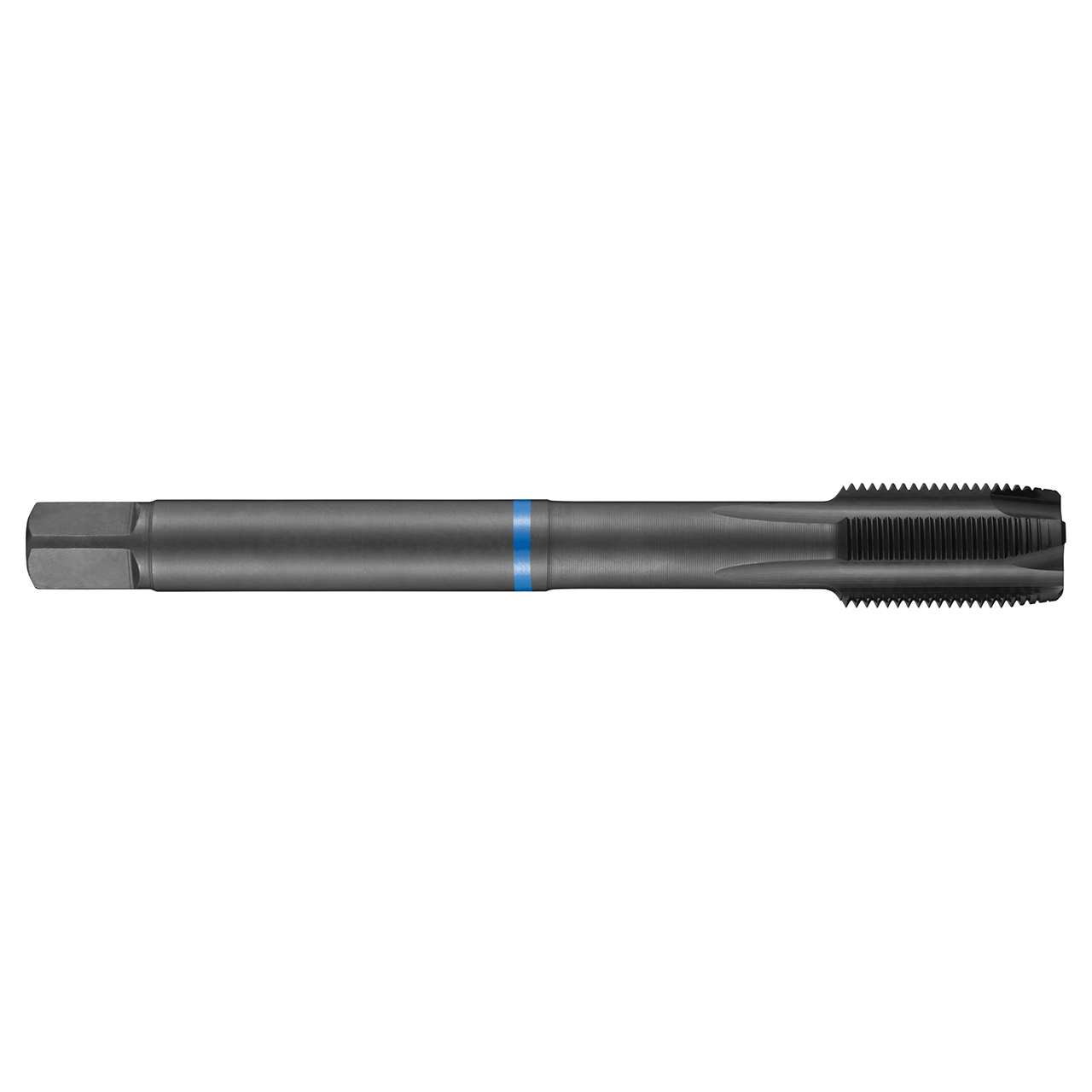

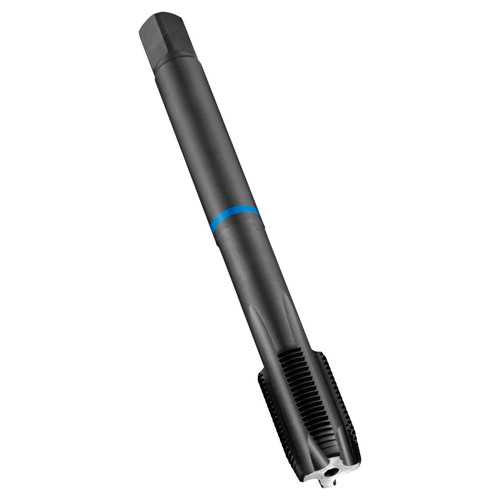

Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric Fine thread M10 with 1.25mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 7.0mm shank and 5.5mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in stainless steel.
Product Specifications
| Connection Diameter (Inch) | 0.2756" |
| Overall Length (Inch) | 3.937" |
| Clamping Width (mm) | 5.5mm |
| No of Flutes | 3 |
| Thread Pitch (mm) | 1.25mm |
| Clamping Length | 8 |
| Thread Diameter Size | 10 |
| Threading Length (mm) | 20mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | Steam Tempered |
| Tap Chamfer Style | B 3.5-5 |
| Surface Color | Black |
| Thread Form | MF-Metric fine |
