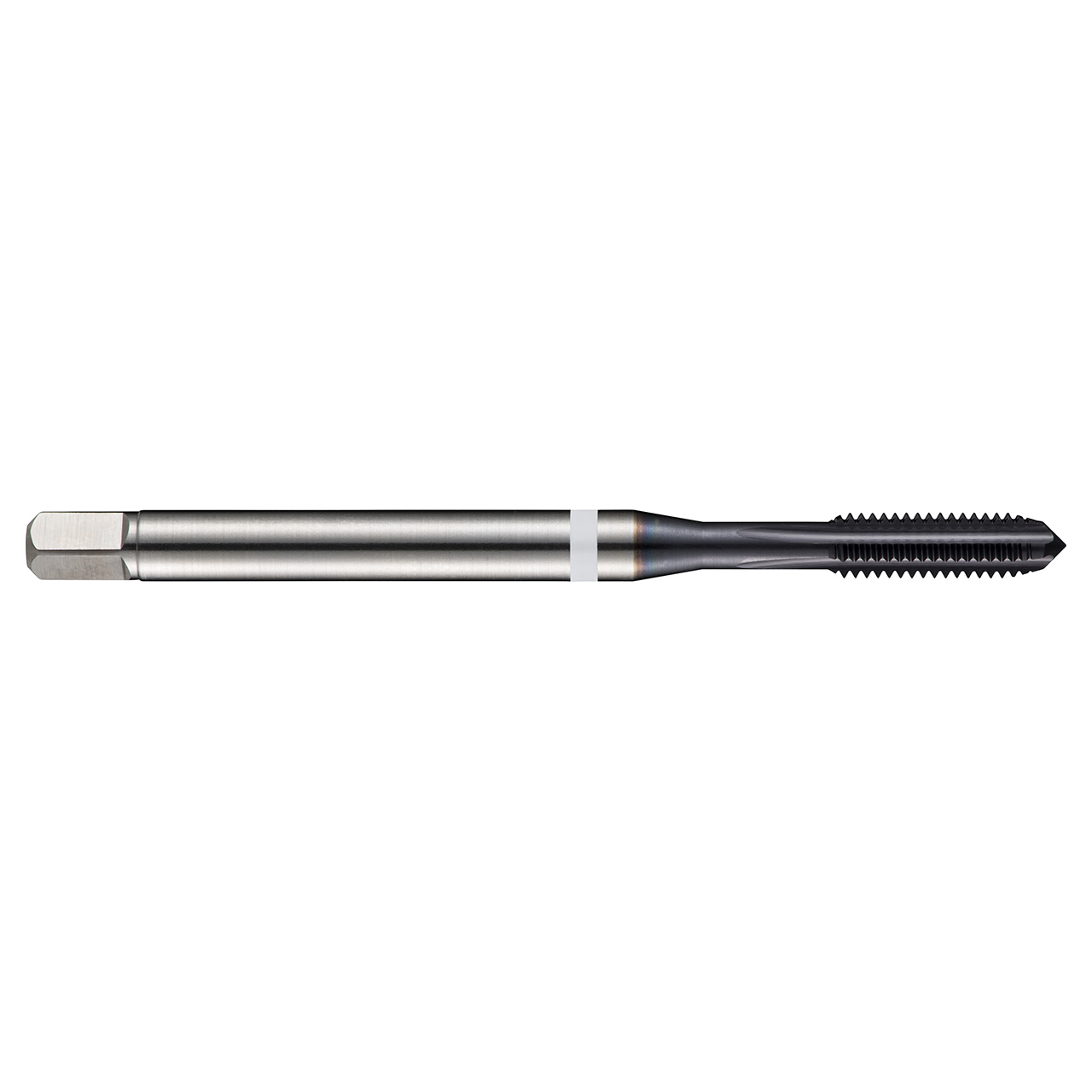

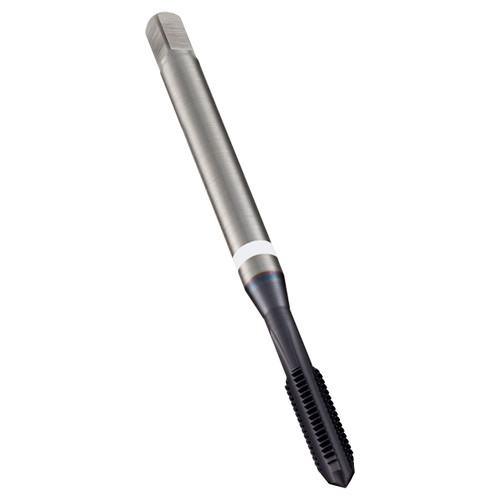

Straight flute tap White Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M10 with 1.50mm pitch and 6HX class of fit, dimensions according to DIN 371 standard with 10.0mm shank and 8.0mm square drive, powder metallurgical HSS-E with TiAlN coating for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers.
| Connection Diameter (Inch) | 0.3937" |
| Overall Length (Inch) | 3.937" |
| Clamping Width (mm) | 8mm |
| No of Flutes | 4 |
| Usable Length (mm) | 39mm |
| Thread Pitch (mm) | 1.5mm |
| Clamping Length | 11 |
| Thread Diameter Size | 10 |
| Threading Length (mm) | 20mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6HX |
| Cutting Direction | Right Hand |
| Coating | TiAlN |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Black - Deep Purple |
| Thread Form | M-Metric coarse |
| Country of origin | India |
