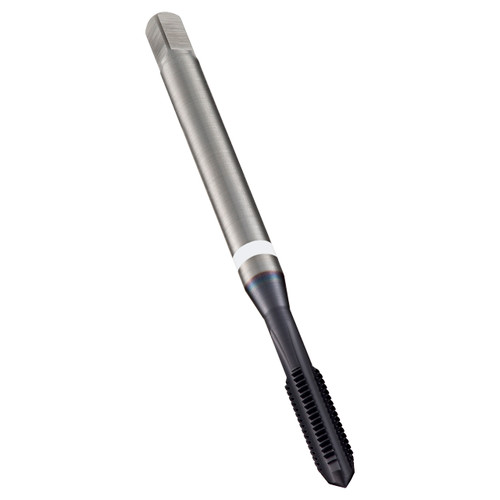

Dormer E390M12 | 0.3543" Diameter x 4.3307" OAL 4 Flute TiAlN Coated Straight Flute Tap

$70.65
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15026785
Weight:
2.02 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Straight flute tap White Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M12 with 1.75mm pitch and 6HX class of fit, dimensions according to DIN 376 standard with 9.0mm shank and 7.0mm square drive, powder metallurgical HSS-E with TiAlN coating for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers.


Product Specifications
Connection Diameter (Inch)0.3543"
Overall Length (Inch)4.3307"
Clamping Width (mm)7mm
No of Flutes4
Thread Pitch (mm)1.75mm
Clamping Length10
Thread Diameter Size12
Threading Length (mm)23mm
Material CodeHSS-E-PM
Thread Tolerance Class6HX
Cutting DirectionRight Hand
CoatingTiAlN
Tap Chamfer StyleC 2-3
Surface ColorBlack - Deep Purple
Thread FormM-Metric coarse
