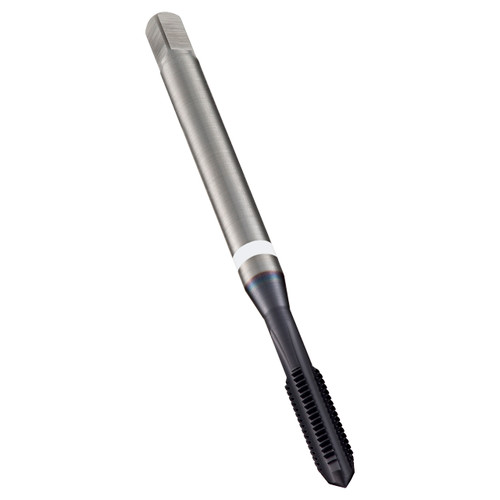

Dormer 6554584 | M16x2.00mm Thread Size x 12.00mm Shank x 25.00mm Length x 110.00mm OAL M 6HX 4 Flute TiAlN Coated HSS-E-PM E390 Straight Flute Tap

$265.00 $119.25
(You save $145.75)
Brand:
Dormer
Thread Limit:
6HX
Overall Length (Decimal Inch):
4.3307"
Overall Length (mm):
110.00mm
Number of Flutes:
4
Material:
HSS-E-PM
Finish/Coating:
TiAlN
Thread Direction:
Right Hand
Through Coolant:
No
Thread Standard:
DIN 376
interval quantity:
1
SKU:
15026786
UPC:
7320760675052
Weight:
0.21 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Straight flute tap White Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M16 with 2.00mm pitch and 6HX class of fit, dimensions according to DIN 376 standard with 12.0mm shank and 9.0mm square drive, powder metallurgical HSS-E with TiAlN coating for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers.


Product Specifications
Connection Diameter (Inch)0.4724"
Overall Length (Inch)4.3307"
Clamping Width (mm)9mm
No of Flutes4
Thread Pitch (mm)2mm
Clamping Length12
Thread Diameter Size16
Threading Length (mm)25mm
Material CodeHSS-E-PM
Thread Tolerance Class6HX
Cutting DirectionRight Hand
CoatingTiAlN
Tap Chamfer StyleC 2-3
Surface ColorBlack - Deep Purple
Thread FormM-Metric coarse
Country of originIndia
