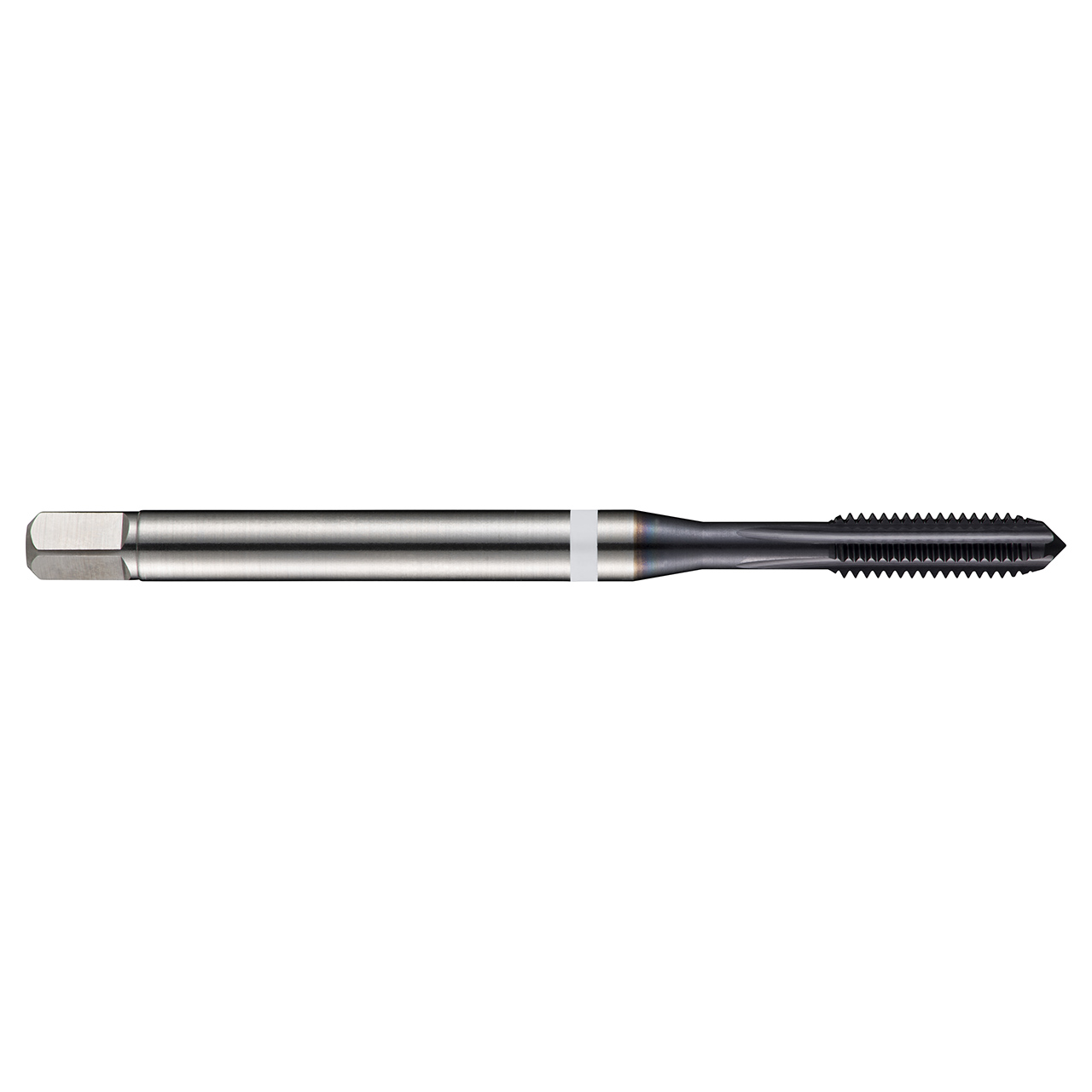

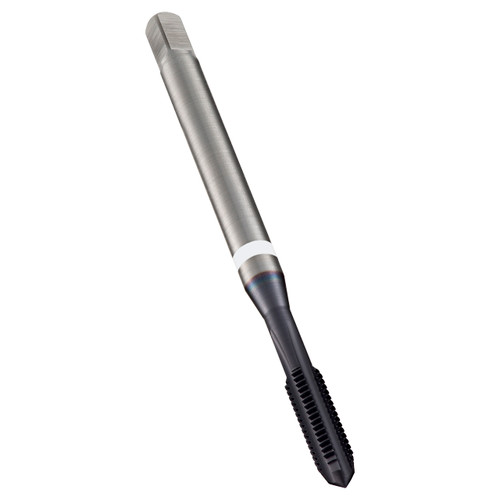

Dormer 6554585 | M20x2.50mm Thread Size x 16.00mm Shank x 30.00mm Length x 140.00mm OAL M 6HX 4 Flute TiAlN Coated HSS-E-PM E390 Straight Flute Tap

$404.00 $181.80
(You save $222.20)
Brand:
Dormer
Thread Limit:
6HX
Overall Length (Decimal Inch):
5.5118"
Overall Length (mm):
140.00mm
Number of Flutes:
4
Material:
HSS-E-PM
Finish/Coating:
TiAlN
Thread Direction:
Right Hand
Through Coolant:
No
Thread Standard:
DIN 376
interval quantity:
1
SKU:
15026787
UPC:
7320760675069
Weight:
0.45 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Straight flute tap White Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M20 with 2.50mm pitch and 6HX class of fit, dimensions according to DIN 376 standard with 16.0mm shank and 12.0mm square drive, powder metallurgical HSS-E with TiAlN coating for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers.


Product Specifications
Connection Diameter (Inch)0.6299"
Overall Length (Inch)5.5118"
Clamping Width (mm)12mm
No of Flutes4
Thread Pitch (mm)2.5mm
Clamping Length15
Thread Diameter Size20
Threading Length (mm)30mm
Material CodeHSS-E-PM
Thread Tolerance Class6HX
Cutting DirectionRight Hand
CoatingTiAlN
Tap Chamfer StyleC 2-3
Surface ColorBlack - Deep Purple
Thread FormM-Metric coarse
Country of originIndia
