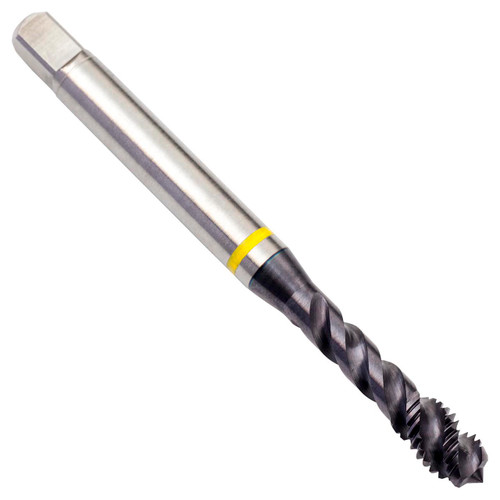

Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M14 with 2.00mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 11.0mm shank and 9.0mm square drive, powder metallurgical HSS-E with TiAlN-Top coating and 48 Degree helix angle for 3xD blind hole threading in steel and cast steel.
Product Specifications
| Connection Diameter (Inch) | 0.4331" |
| Overall Length (Inch) | 4.3307" |
| Clamping Width (mm) | 9mm |
| No of Flutes | 3 |
| Flute Helix Angle | 48 |
| Thread Pitch (mm) | 2mm |
| Clamping Length | 12 |
| Thread Diameter Size | 14 |
| Threading Length (mm) | 20mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | TiAlN/Top |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Black - Deep Purple |
| Thread Form | M-Metric coarse |
| Country of origin | India |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
Dormer
Thread Limit:
6H
Number of Flutes:
3
Material:
HSS-E-PM
Finish/Coating:
TiAlN/Top
Flute Direction:
Right Hand
Overall Length (Decimal Inch):
4.3307"
Overall Length (mm):
110.00mm
