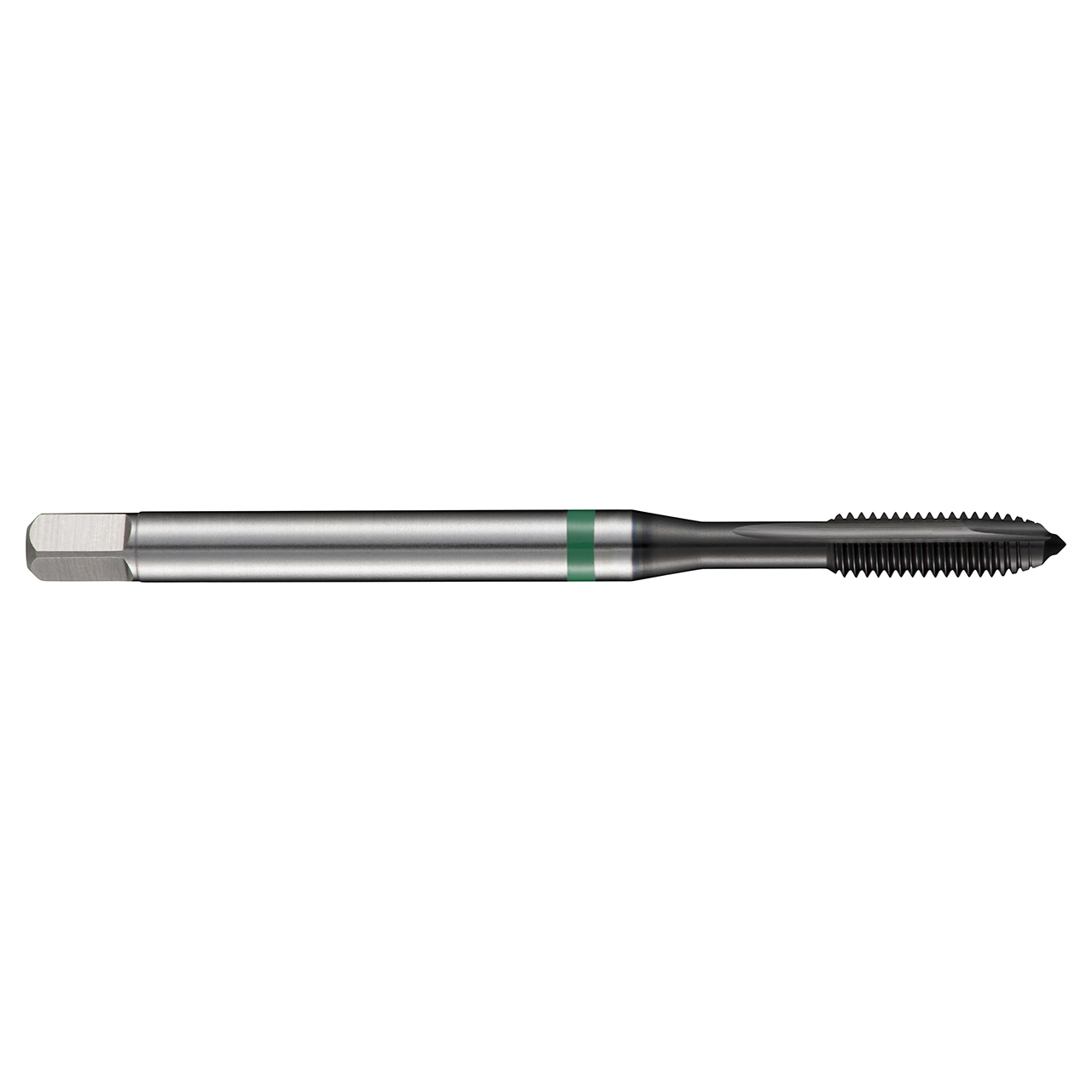

Spiral point tap Green Shark with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M20 with 2.50mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 16.0mm shank and 12.0mm square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in cast aluminium.
Product Specifications
| Connection Diameter (Inch) | 0.6299" |
| Overall Length (Inch) | 5.5118" |
| Clamping Width (mm) | 12mm |
| No of Flutes | 4 |
| Thread Pitch (mm) | 2.5mm |
| Clamping Length | 15 |
| Thread Diameter Size | 20 |
| Threading Length (mm) | 30mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | SUPER-B |
| Tap Chamfer Style | B 3.5-5 |
| Surface Color | Black - Deep Purple |
| Thread Form | M-Metric coarse |
