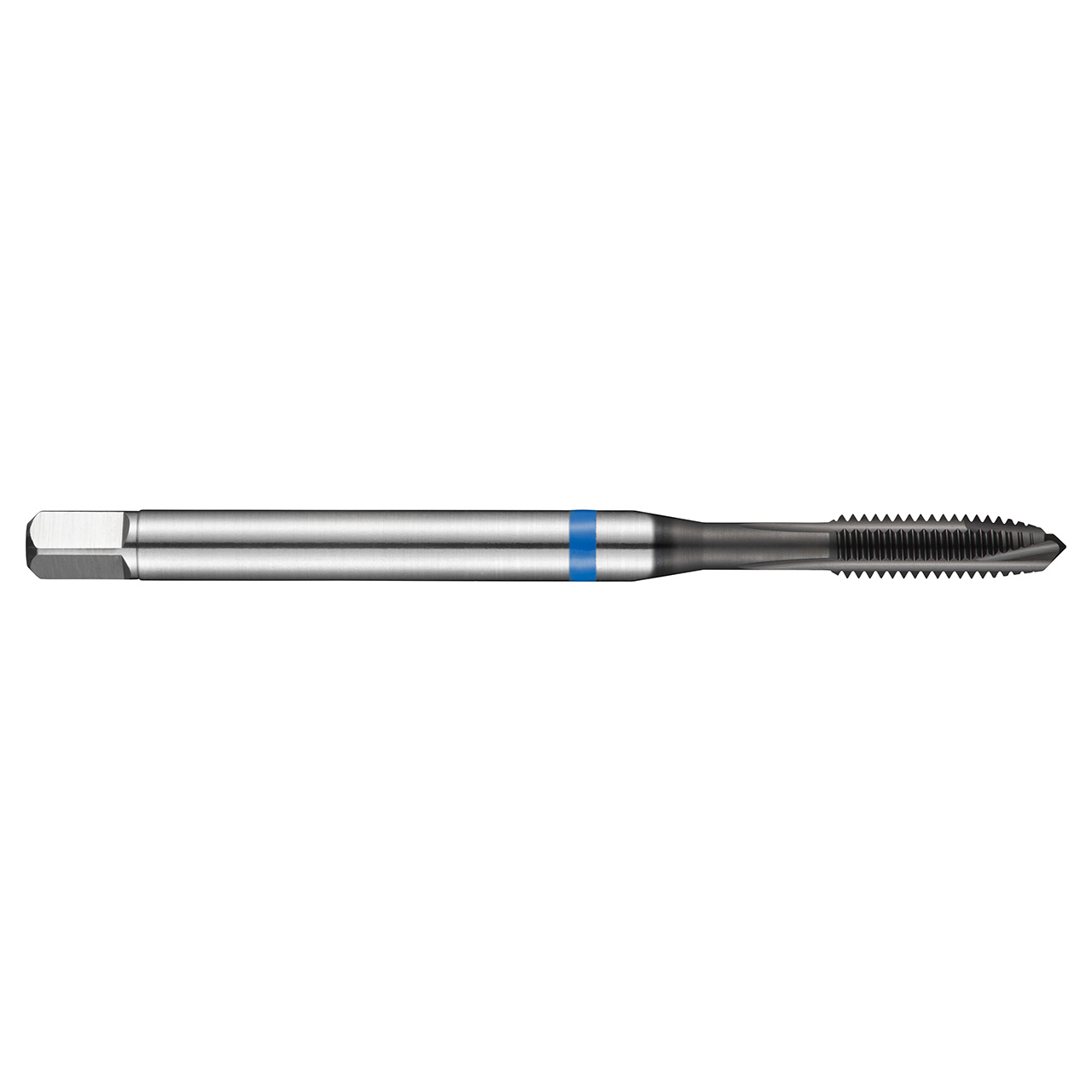

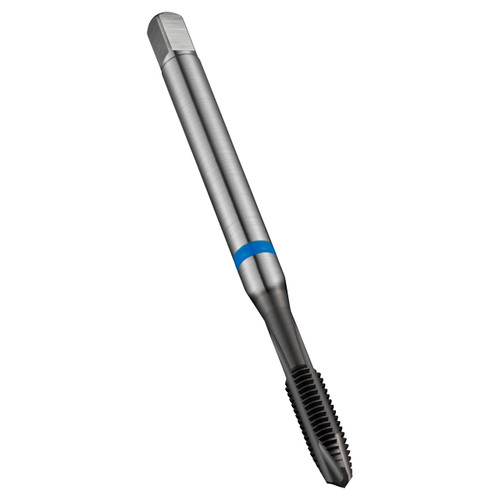

Dormer 6305842 | M20x2.50mm Thread Size x 16.00mm Shank x 30.00mm Length x 140.00mm OAL M 6H 4 Flute SUPER-B Coated HSS-E-PM E241 Spiral Point Tap

$398.00 $179.10
(You save $218.90)
Brand:
Dormer
Thread Limit:
6H
Number of Flutes:
4
Thread Standard:
DIN 376
Finish/Coating:
SUPER-B
Material:
HSS-E-PM
Through Coolant:
No
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
15026644
UPC:
7320760664476
Weight:
0.48 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M20 with 2.50mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 16.0mm shank and 12.0mm square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in ferritic, martensitic and austenitic stainless steel.


Product Specifications
Connection Diameter (Inch)0.6299"
Overall Length (Inch)5.5118"
Clamping Width (mm)12mm
No of Flutes4
Thread Pitch (mm)2.5mm
Clamping Length15
Thread Diameter Size20
Threading Length (mm)30mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingSUPER-B
Tap Chamfer StyleB 3.5-5
Surface ColorBlack - Deep Purple
Thread FormM-Metric coarse
Country of originIndia
