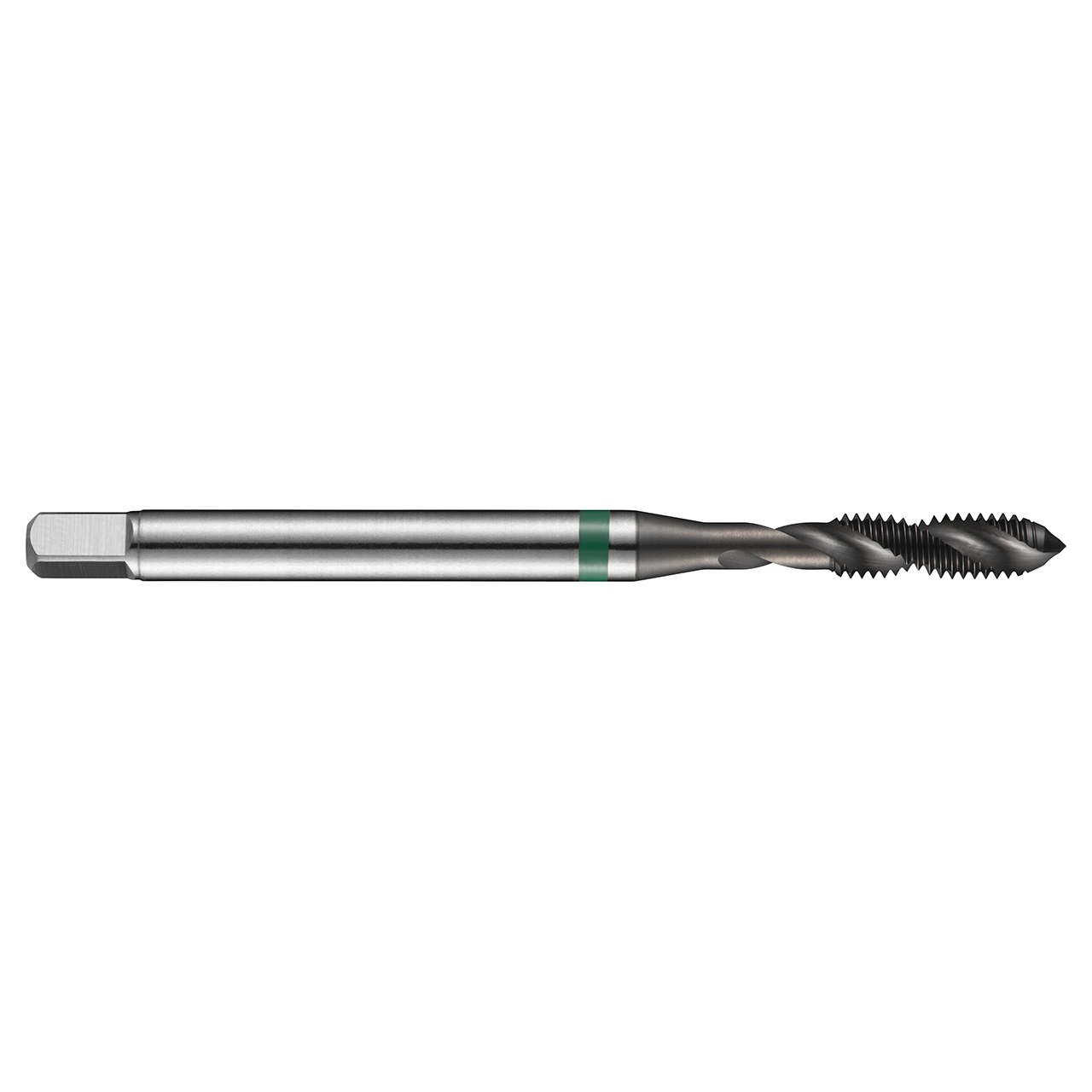

Dormer E474M8 | 0.315" Diameter x 3.5433" OAL 2 Flute SUPER-B Coated Spiral Flute Tap

$52.20
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15026774
Weight:
1.14 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral flute tap Green Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M8 with 1.25mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 8.0mm shank and 6.2mm square drive, powder metallurgical HSS-E with Super-B coating and 35° helix angle for 2.5xD blind hole threading in cast aluminium.


Product Specifications
Connection Diameter (Inch)0.315"
Overall Length (Inch)3.5433"
Clamping Width (mm)6.2mm
No of Flutes2
Flute Helix Angle35
Usable Length (mm)35mm
Thread Pitch (mm)1.25mm
Clamping Length9
Thread Diameter Size8
Threading Length (mm)18mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingSUPER-B
Tap Chamfer StyleC 2-3
Surface ColorBlack - Deep Purple
Thread FormM-Metric coarse
