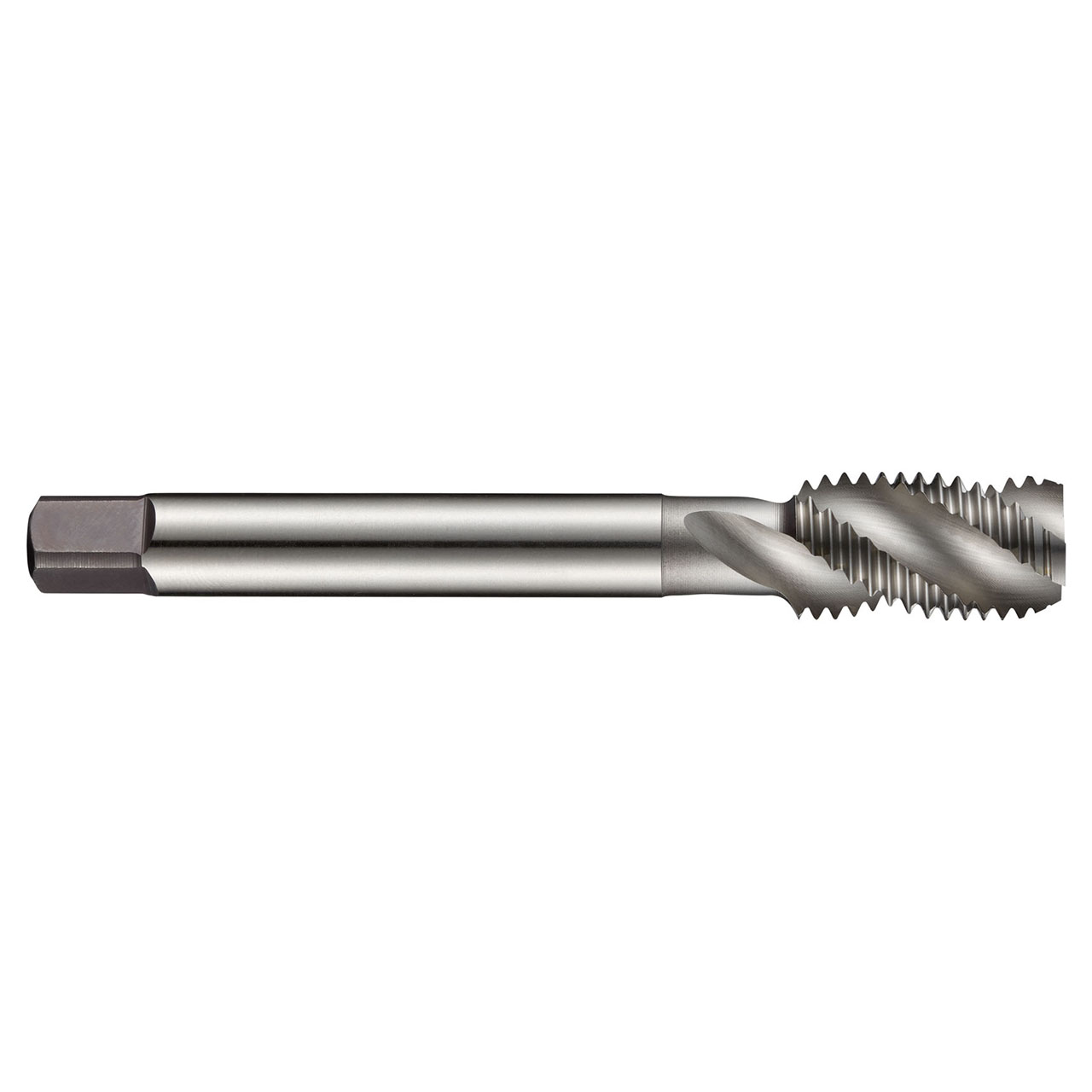

Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for British Standard Fine thread BSF 1/2" with 16 TPI and Medium class of fit, dimensions according to ISO 529 standard with 9.0mm shank and 7.1mm square drive, HSS with bright finish with steam tempering and 40 Degree helix angle for 2xD blind hole threading in free machining, plain carbon and alloy steel.
Product Specifications
| Connection Diameter (Inch) | 0.3543" |
| Overall Length (Inch) | 3.5039" |
| Clamping Width (mm) | 7.1mm |
| Thread Diameter (mm) | 12.7mm |
| No of Flutes | 3 |
| Flute Helix Angle | 40 |
| Thread Diameter Size | 1/2 |
| Threading Length (mm) | 22mm |
| Material Code | HSS |
| Thread Tolerance Class | Medium |
| Cutting Direction | Right Hand |
| Coating | Bright/ST |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Bright & Blue |
| Thread Form | BSF-British standard fine |
| Country of origin | Brazil |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
