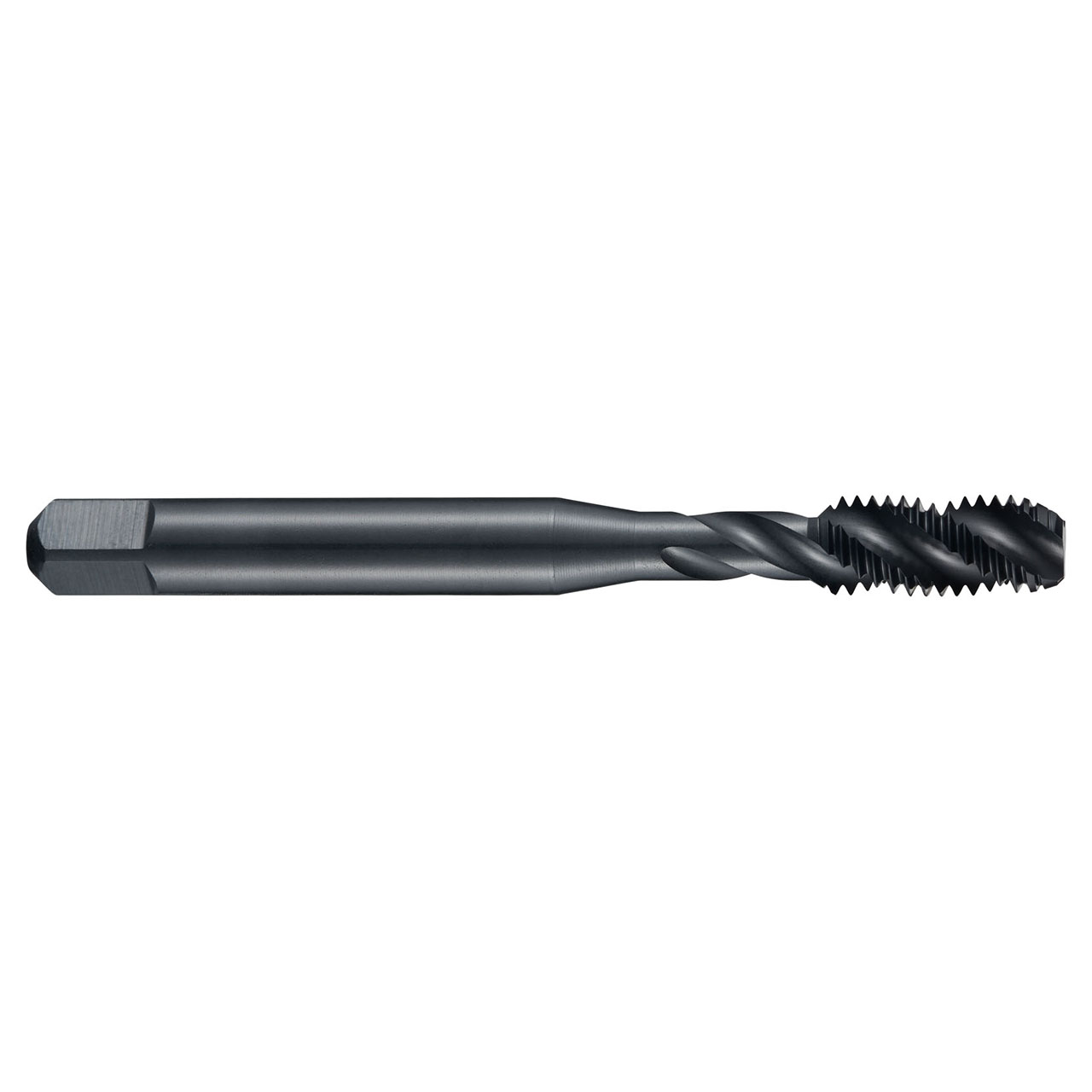

Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for British Standard Fine thread BSF 1/2" with 16 TPI and Medium class of fit, dimensions according to ISO 529 standard with 9.0mm shank and 7.1mm square drive, HSS with bright finish with steam tempering and 40 Degree helix angle for 2xD blind hole threading in general purpose applications.
Product Specifications
| Connection Diameter (Inch) | 0.3543" |
| Overall Length (Inch) | 3.5039" |
| Clamping Width (mm) | 7.1mm |
| Thread Diameter (mm) | 12.7mm |
| No of Flutes | 3 |
| Flute Helix Angle | 40 |
| Thread Diameter Size | 1/2 |
| Threading Length (mm) | 22mm |
| Material Code | HSS |
| Thread Tolerance Class | Medium |
| Cutting Direction | Right Hand |
| Coating | Bright/ST |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Bright & Blue |
| Thread Form | BSF-British standard fine |
| Country of origin | Brazil |
