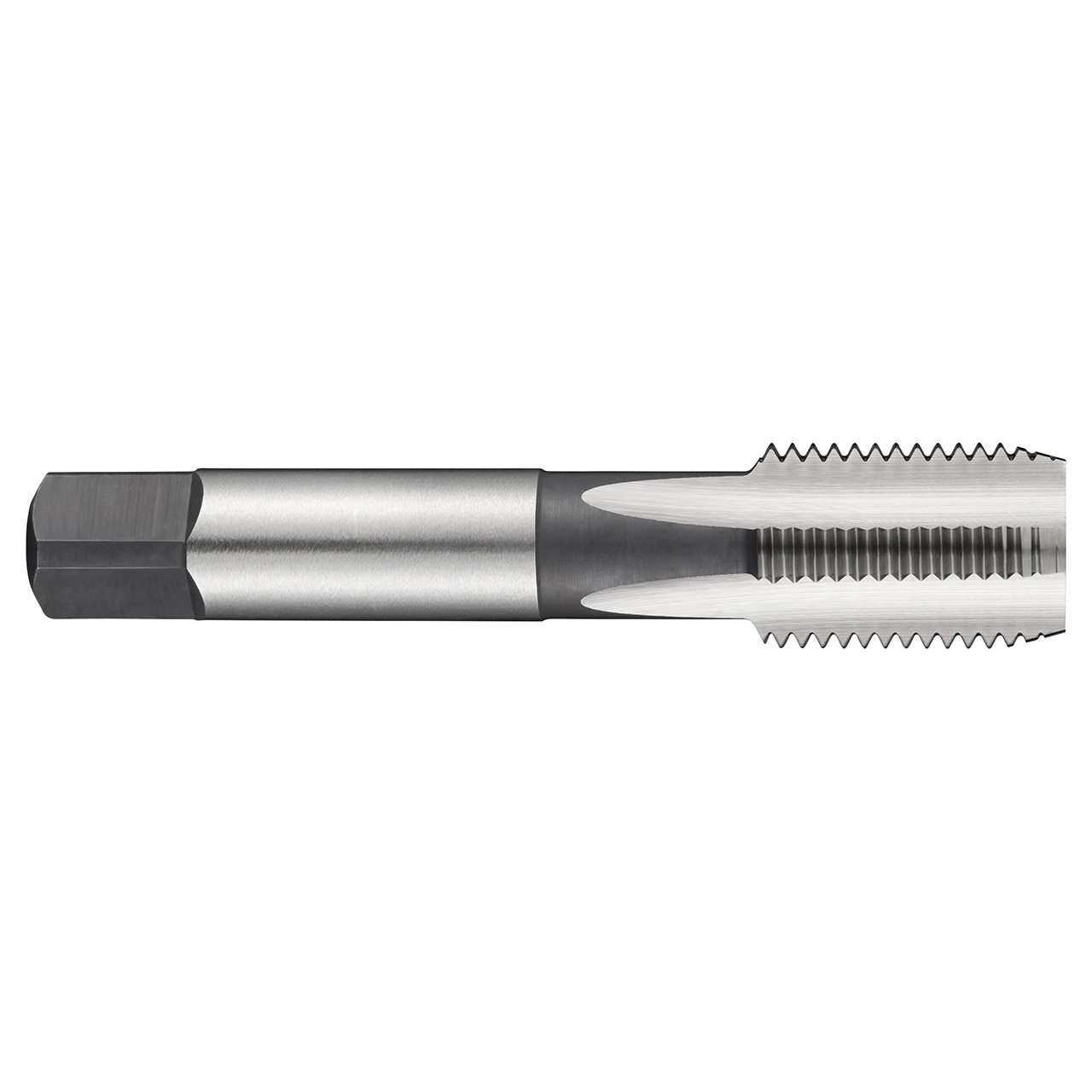

Set of straight flute hand taps NO7 for British Standard Pipe thread G 5/8" with 14 TPI and Normal class of fit, consisting of 1 tap with a 4-6xP plug lead and 1 tap with a 2-3xP semi-bottoming lead, dimensions according to ISO 2284 standard with 18.0mm shank and 14.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel.
Product Specifications
| Connection Diameter (Inch) | 0.7087" |
| Overall Length (Inch) | 3.5827" |
| Clamping Width (mm) | 14mm |
| Thread Diameter (mm) | 22.911mm |
| No of Flutes | 4 |
| Clamping Length | 18 |
| Thread Diameter Size | 5/8 |
| Threading Length (mm) | 26mm |
| Material Code | HSS |
| Thread Tolerance Class | Normal |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
| Thread Form | G-British standard pipe fastening-G series |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
