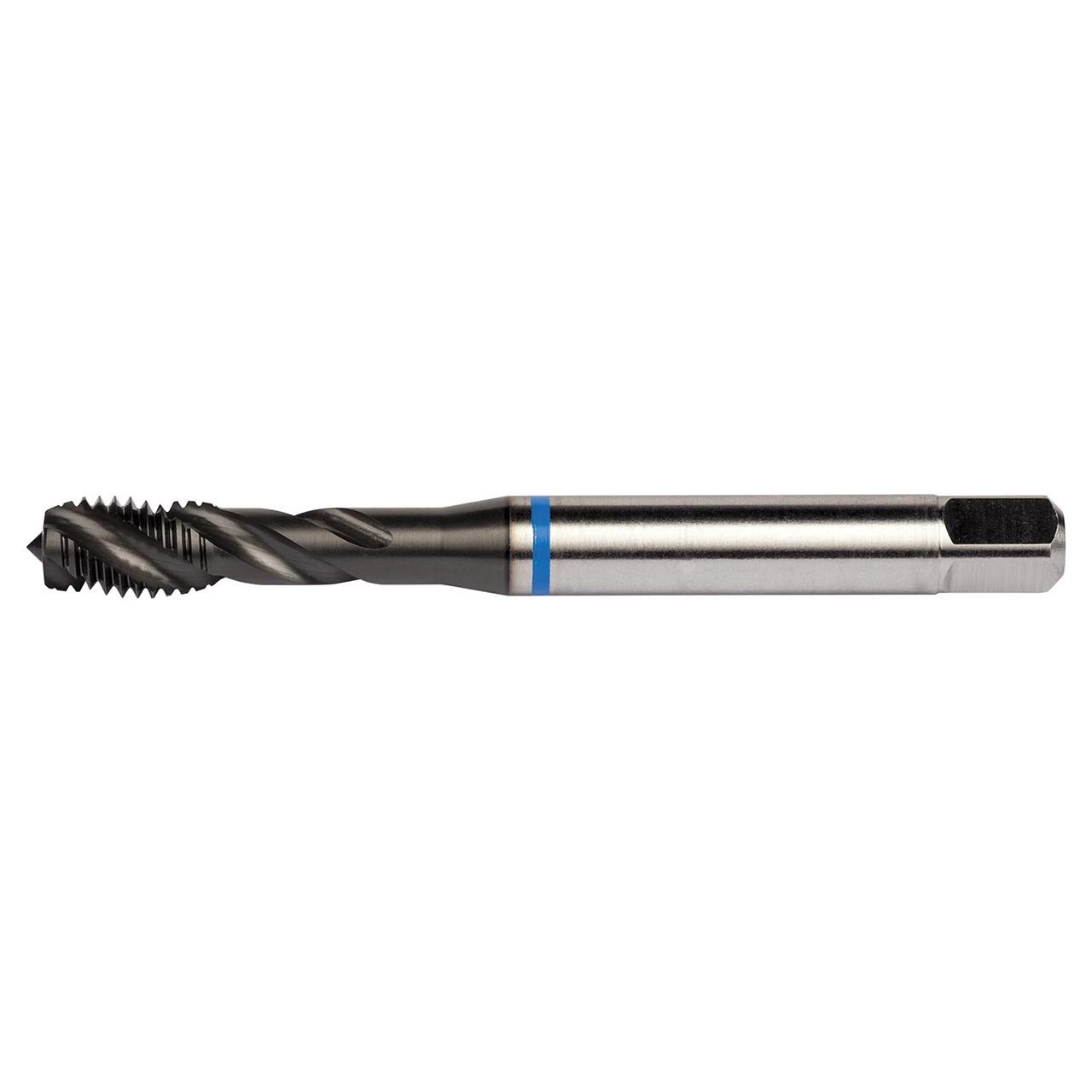

Dormer E628M24 | 0.76" Diameter x 6.2992" OAL 4 Flute SUPER-B Coated Spiral Flute Tap

$361.80
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15026004
Weight:
10.62 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Spiral flute tap Blue Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M24 with 3.00mm pitch and 6H class of fit with D8 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.7600" shank and 0.5670" square drive, powder metallurgical HSS-E with Super-B coating and 40° helix angle for 2.5xD blind hole threading in stainless steel.


Product Specifications
Connection Diameter (Inch)0.76"
Overall Length (Inch)6.2992"
No of Flutes4
Flute Helix Angle40
Thread Pitch (mm)3mm
Clamping Length19
Thread Diameter Size24
Threading Length (mm)30mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingSUPER-B
Tap Chamfer StyleC 2-3
Surface ColorBlack - Deep Purple
Thread FormM-Metric coarse
