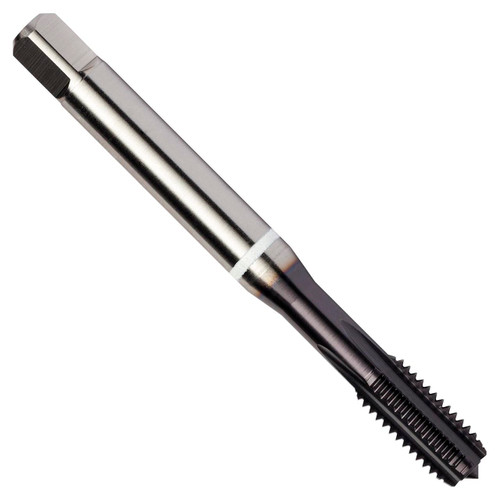

Dormer E630M8 | 0.318" Diameter x 3.5433" OAL 4 Flute TiAlN/Top Coated Straight Flute Tap

$25.92
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15025871
Weight:
1.52 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Straight flute tap White Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M8 with 1.25mm pitch and 6H class of fit with D5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3180" shank and 0.2360" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers.


Product Specifications
Connection Diameter (Inch)0.318"
Overall Length (Inch)3.5433"
No of Flutes4
Usable Length (mm)35mm
Thread Pitch (mm)1.25mm
Clamping Length10
Thread Diameter Size8
Threading Length (mm)18mm
Material CodeHSS-E-PM
Thread Tolerance Class6HX
Cutting DirectionRight Hand
CoatingTiAlN/Top
Tap Chamfer StyleC 2-3
Surface ColorBlack - Deep Purple
Thread FormM-Metric coarse
