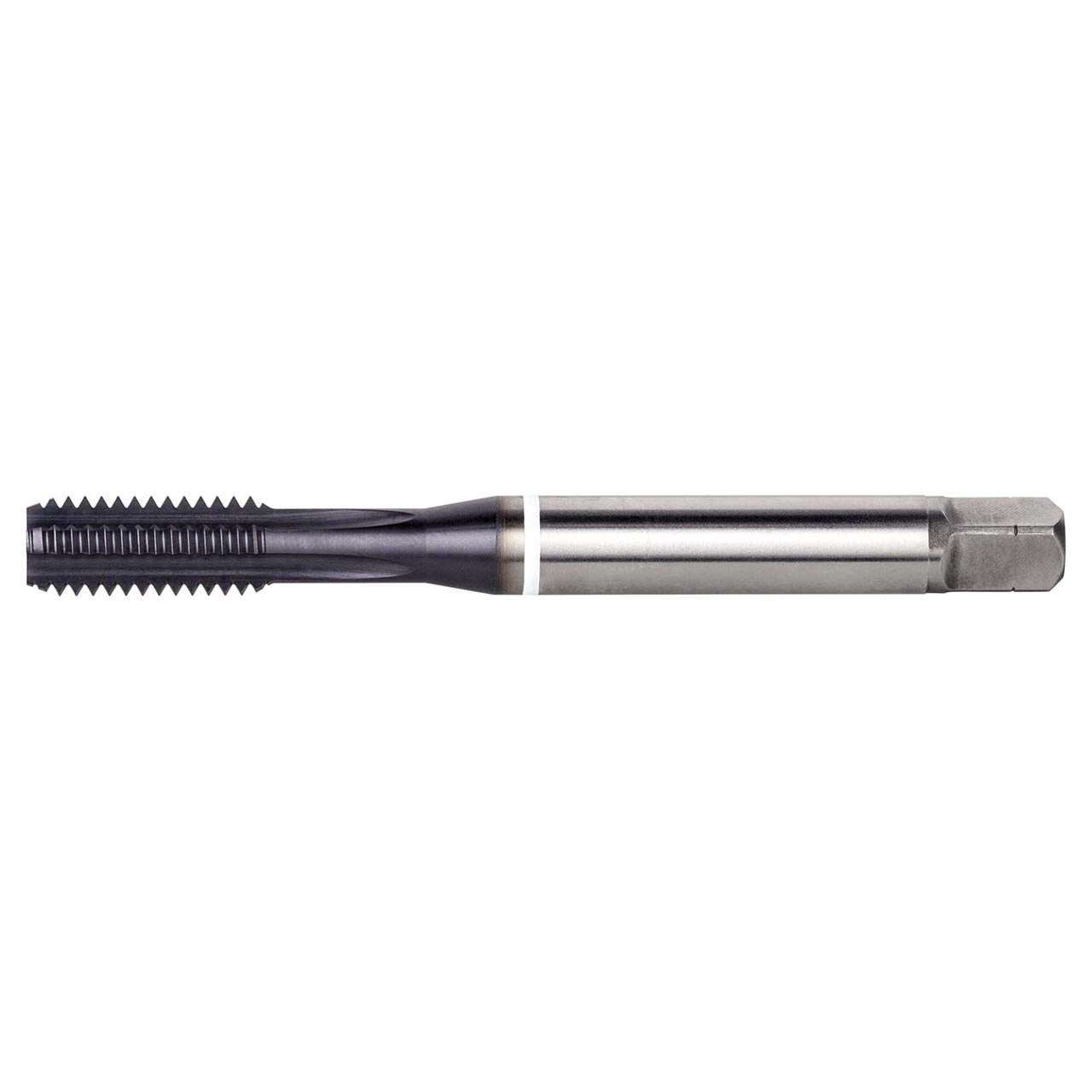

Dormer E631M16 | 0.48" Diameter x 4.3307" OAL 4 Flute TiAlN/Top Coated Straight Flute Tap

$124.20
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15025890
UPC:
7320760751145
Weight:
3.25 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Straight flute tap White Shark with chamfer form E with a 1.5-2xP bottoming lead, for ISO-Metric thread M16 with 2.00mm pitch and 6H class of fit with D7 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.4800" shank and 0.3580" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers.


Product Specifications
Connection Diameter (Inch)0.48"
Overall Length (Inch)4.3307"
No of Flutes4
Thread Pitch (mm)2mm
Clamping Length14
Thread Diameter Size16
Threading Length (mm)23mm
Material CodeHSS-E-PM
Thread Tolerance Class6HX
Cutting DirectionRight Hand
CoatingTiAlN/Top
Tap Chamfer StyleE 1.5-2
Surface ColorBlack - Deep Purple
Thread FormM-Metric coarse
