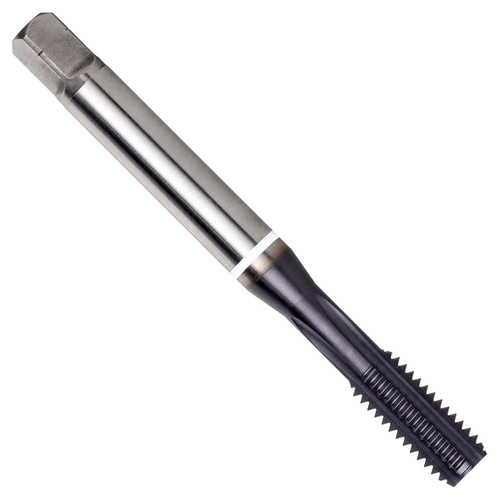

Straight flute tap White Shark with chamfer form E with a 1.5-2xP bottoming lead, for ISO-Metric thread M6 with 1.00mm pitch and 6H class of fit with D5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.2550" shank and 0.1890" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers.
Product Specifications
| Connection Diameter (Inch) | 0.255" |
| Overall Length (Inch) | 3.1496" |
| No of Flutes | 4 |
| Usable Length (mm) | 25mm |
| Thread Pitch (mm) | 1mm |
| Clamping Length | 8 |
| Thread Diameter Size | 6 |
| Threading Length (mm) | 15mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6HX |
| Cutting Direction | Right Hand |
| Coating | TiAlN/Top |
| Tap Chamfer Style | E 1.5-2 |
| Surface Color | Black - Deep Purple |
| Thread Form | M-Metric coarse |
