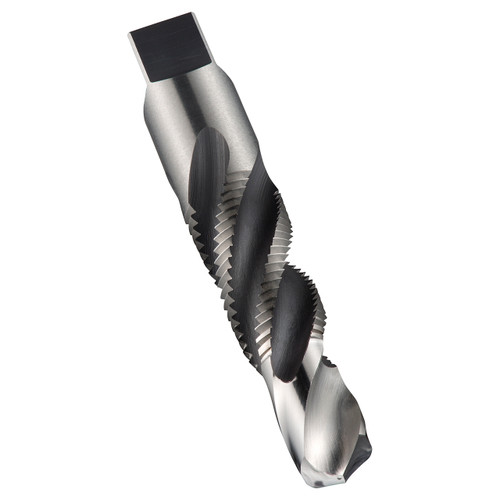

Combination drill-tap with a 27° spiral flute, for National Pipe Taper thread NPT 1/8" with 27 TPI and Normal class of fit, dimensions according to ANSI standard with 0.4370" shank and 0.4370" square drive, HSS with bright finish and 27° helix angle for 1.5xD through or blind hole threading in free machining steel.
Product Specifications
| Connection Diameter (Inch) | 0.437" |
| Overall Length (Inch) | 2.875" |
| No of Flutes | 2 |
| Flute Helix Angle | 27 |
| Thread Diameter (Inch) | 0.3346" |
| Thread Diameter Size | 1/8 |
| Material Code | HSS |
| Thread Tolerance Class | Normal |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
| Thread Form | NPT-National taper pipe |
