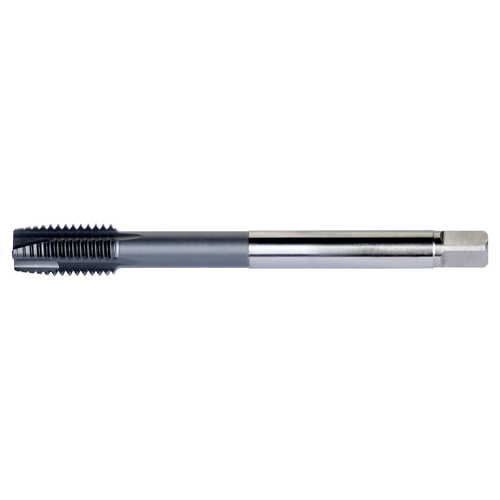

Thread size M16 mm x 2 mm, with thread tolerance class 93707, and maximum threading depth 40 mm.
Product Specifications
| Manufacturer Part Number | E697M16 |
| Connection Diameter (Decimal Inch) | 0.480" |
| Thread Diameter Size | 16" |
| Overall Length (Decimal Inch) | 4.331" |
| Overall Length (mm) | 110.00mm |
| Thread Length (mm) | 23.00mm |
| Thread Pitch (Decimal Inch) | 0.079" |
| Thread Pitch (mm) | 2.00mm |
| Premachined Hole Diameter (mm) | 14.00mm |
| Clamping Length (mm) | 14.00mm |
| Thread Length (Decimal Inch) | 0.906" |
| Clamping Length (Decimal Inch) | 0.551" |
| Clamping Width (Decimal Inch) | 0.358" |
| Premachined Hole Diameter (Decimal Inch) | 0.551" |
| Tolerance limit | D7 |
| Number of Flutes | 4 |
| Tap Chamfer Style | B 3.5 - 5 |
| Thread Form | M - Metric Coarse |
| Flute Geometry | Spiral Point Geometry |
| Cutting Direction | Right Hand |
| Basic Standard Group | DIN/ANSI |
| Material | HSS-E-PM |
| Coating | TiCN |
| Product Type | Spiral Point Tap |
| Country of Origin | Brazil |
