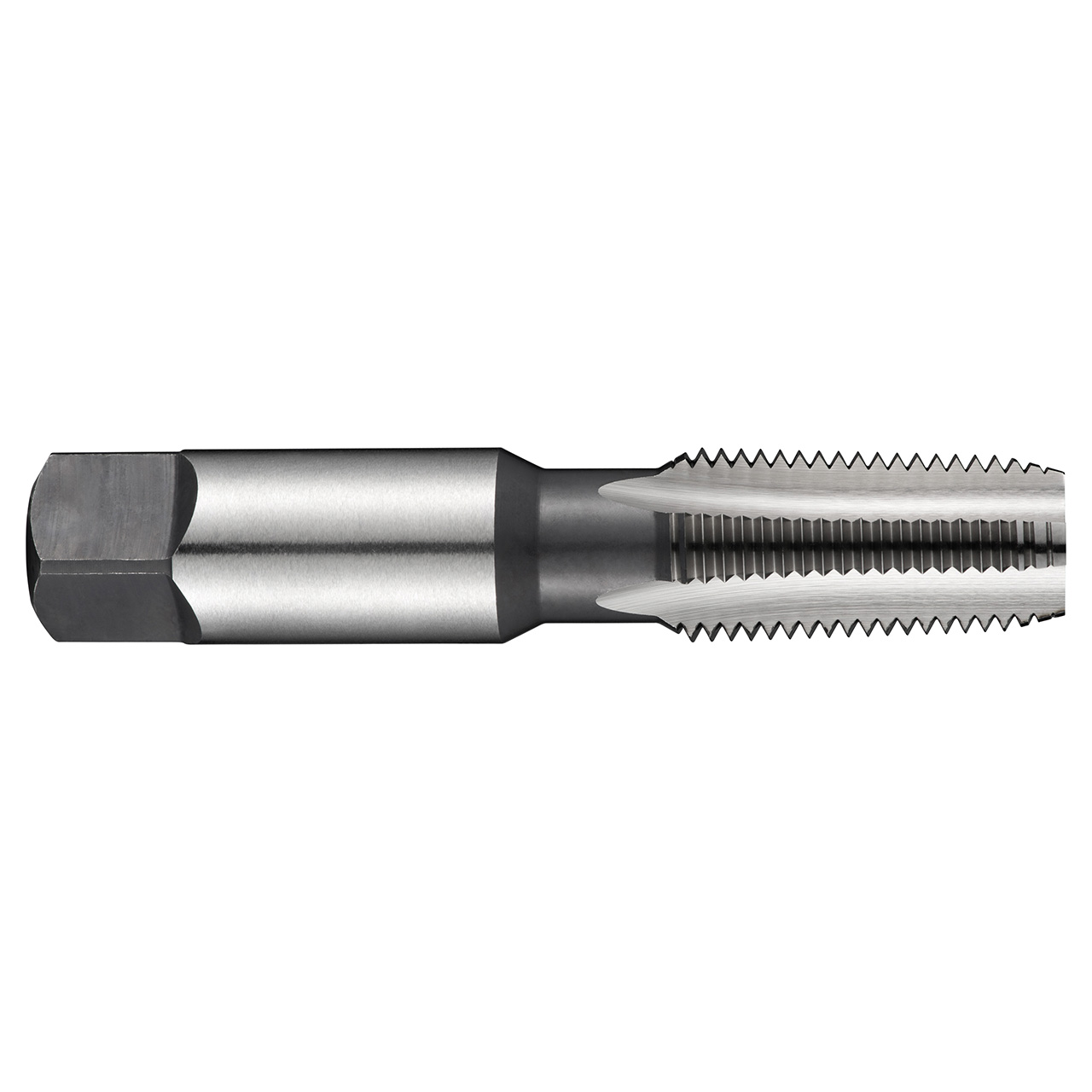

Set of straight flute hand taps NO7 for National Pipe Taper thread NPT 1/4" with 18 TPI and Normal class of fit, consisting of 1 tap with a 4-6xP plug lead and 1 tap with a 2-3xP semi-bottoming lead, dimensions according to ~ANSI B94.9 standard with 14.3mm shank and 10.7mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys.
Product Specifications
| Connection Diameter (Inch) | 0.563" |
| Overall Length (Inch) | 2.9528" |
| Clamping Width (mm) | 10.7mm |
| Thread Diameter (mm) | 13.72mm |
| No of Flutes | 4 |
| Clamping Length | 11 |
| Thread Diameter Size | 1/4 |
| Threading Length (mm) | 27mm |
| Material Code | HSS |
| Thread Tolerance Class | Normal |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Bright Silver |
| Thread Form | NPT-National taper pipe |
| Country of origin | Brazil |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
Dormer
Thread Size (Inch):
1/4"
Thread Standard:
ANSI B94.9
Number of Flutes:
4
Material:
HSS
Finish/Coating:
Bright
Thread Direction:
Right Hand
Thread Limit:
Normal
interval quantity:
1
